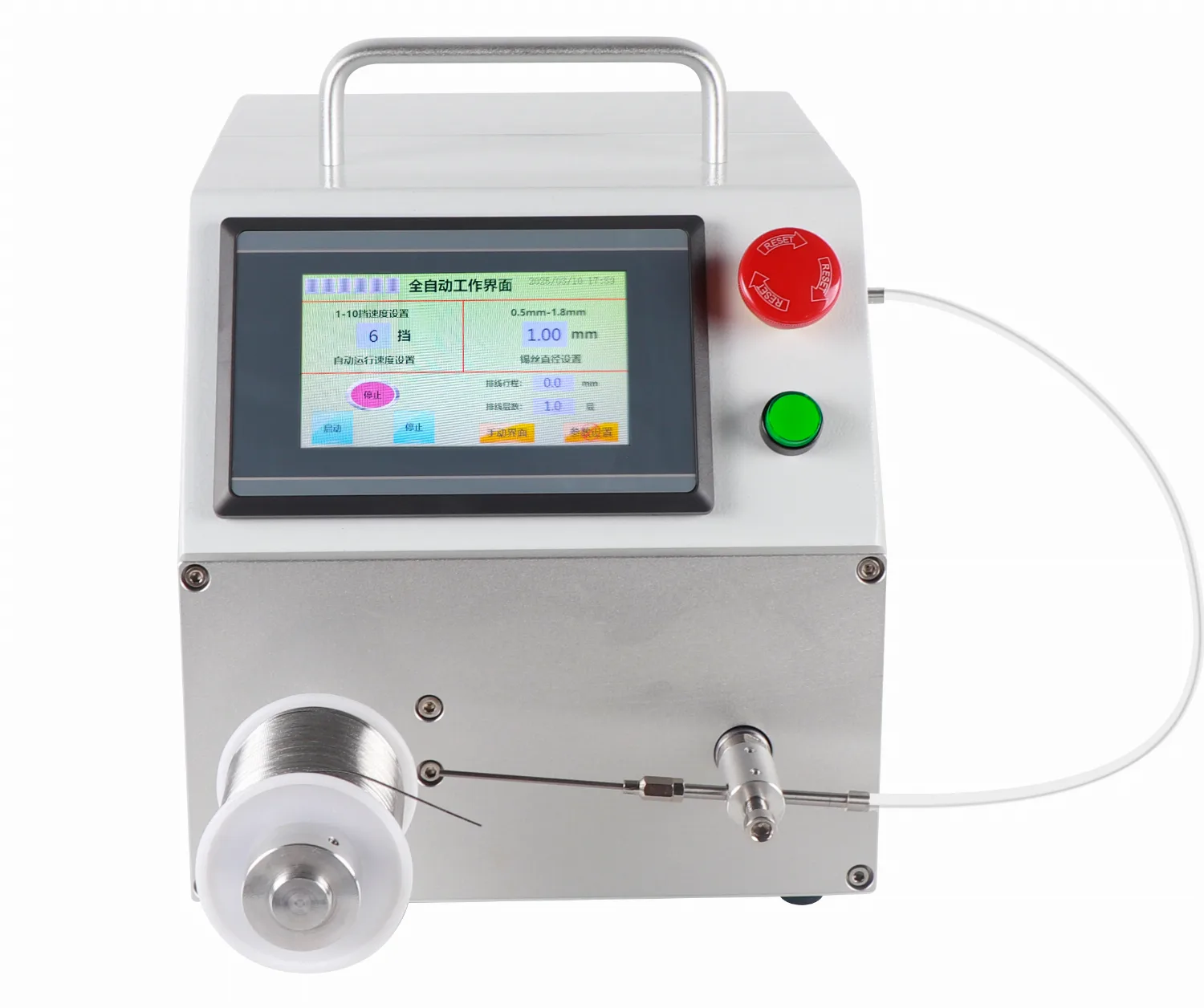

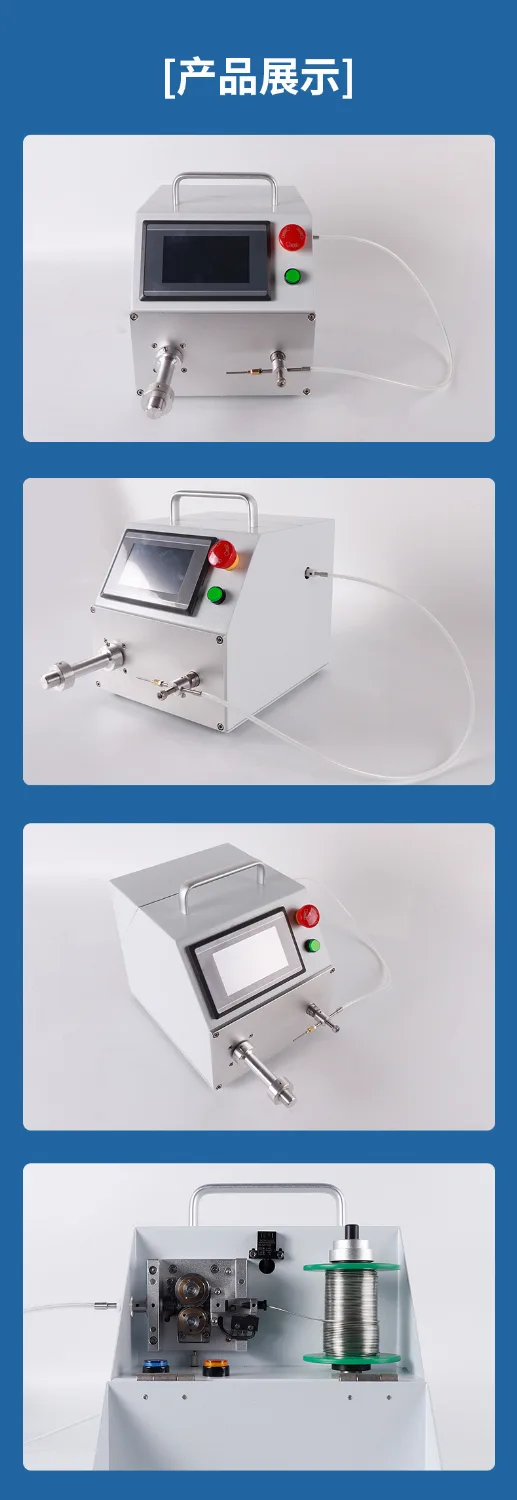

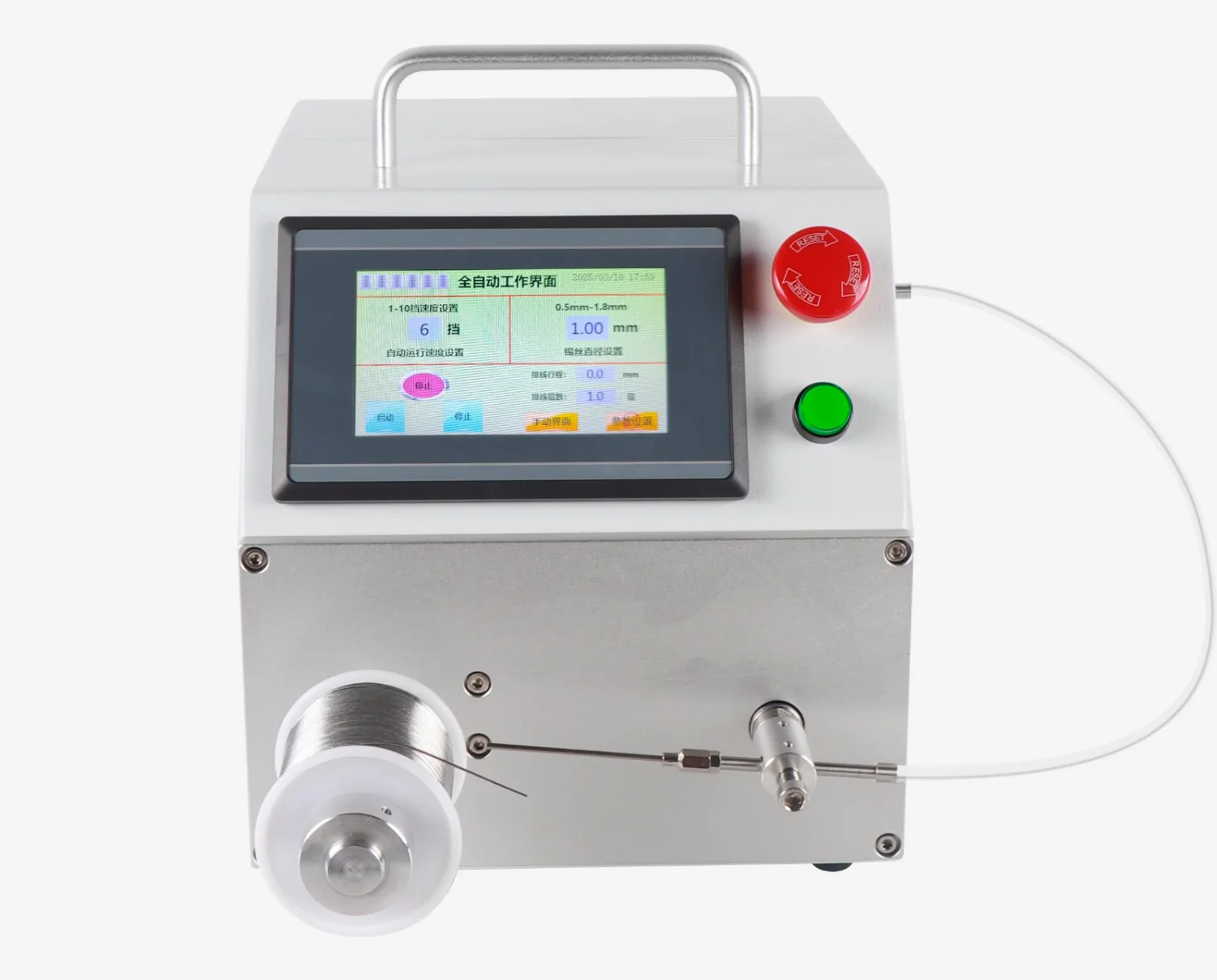

CHUERA 370DV Solder Wire Cutting Machine

The CHUERA 370DV perforates flux-cored solder wire and rewinds it neatly back onto a spool in one machine. It is used on production lines that prepare solder wire for soldering stations, handling 0.6–1.6 mm wire at 50–260 mm/s.

Key features

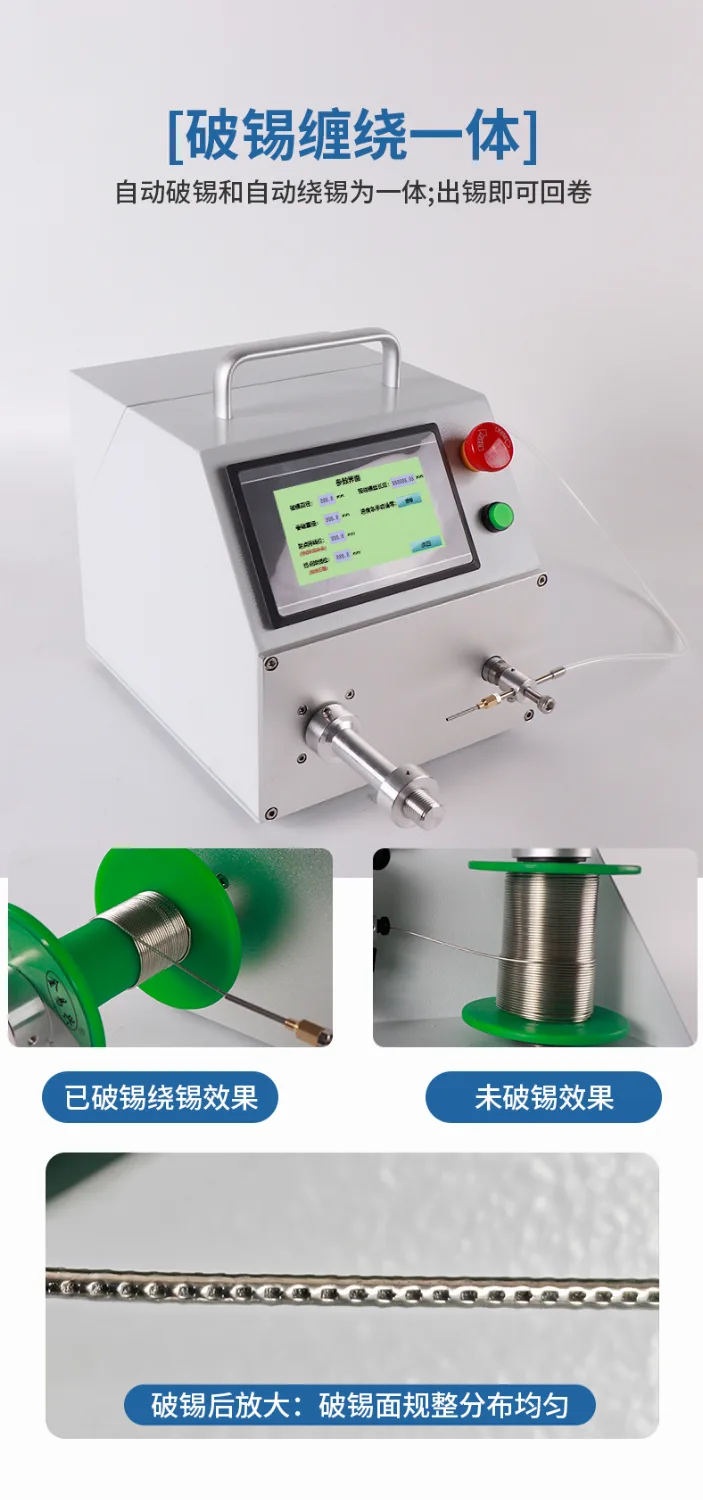

• Perforating and rewinding in one machine

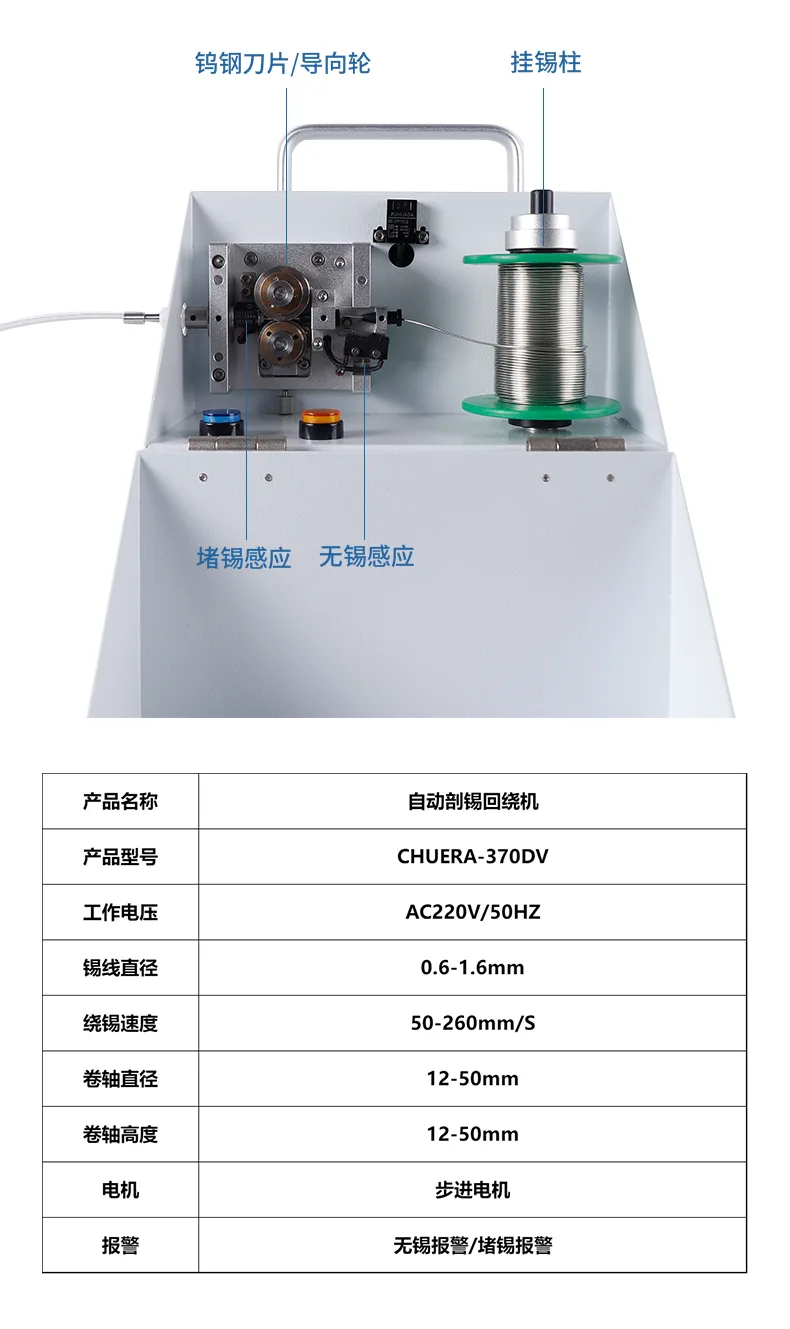

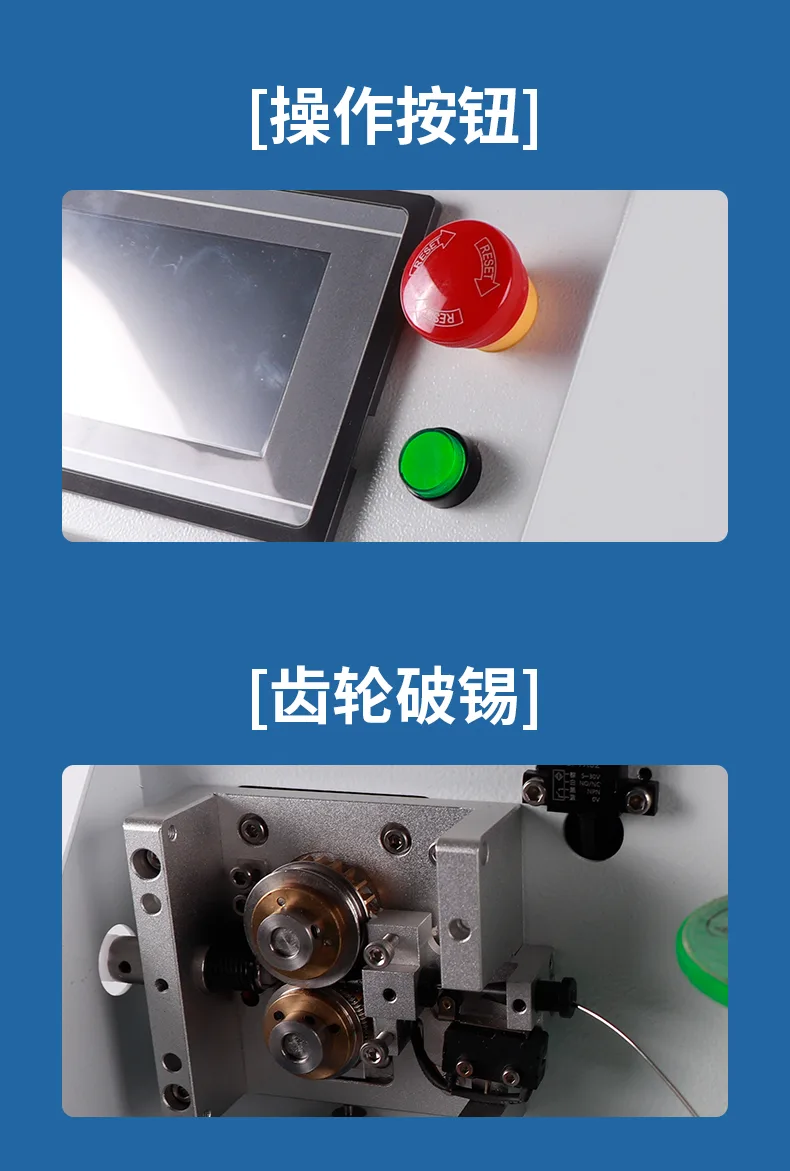

• Gear-driven perforating with tungsten-steel blade / guide wheel
• Built-in rewinding mechanism lays the wire evenly and tightly

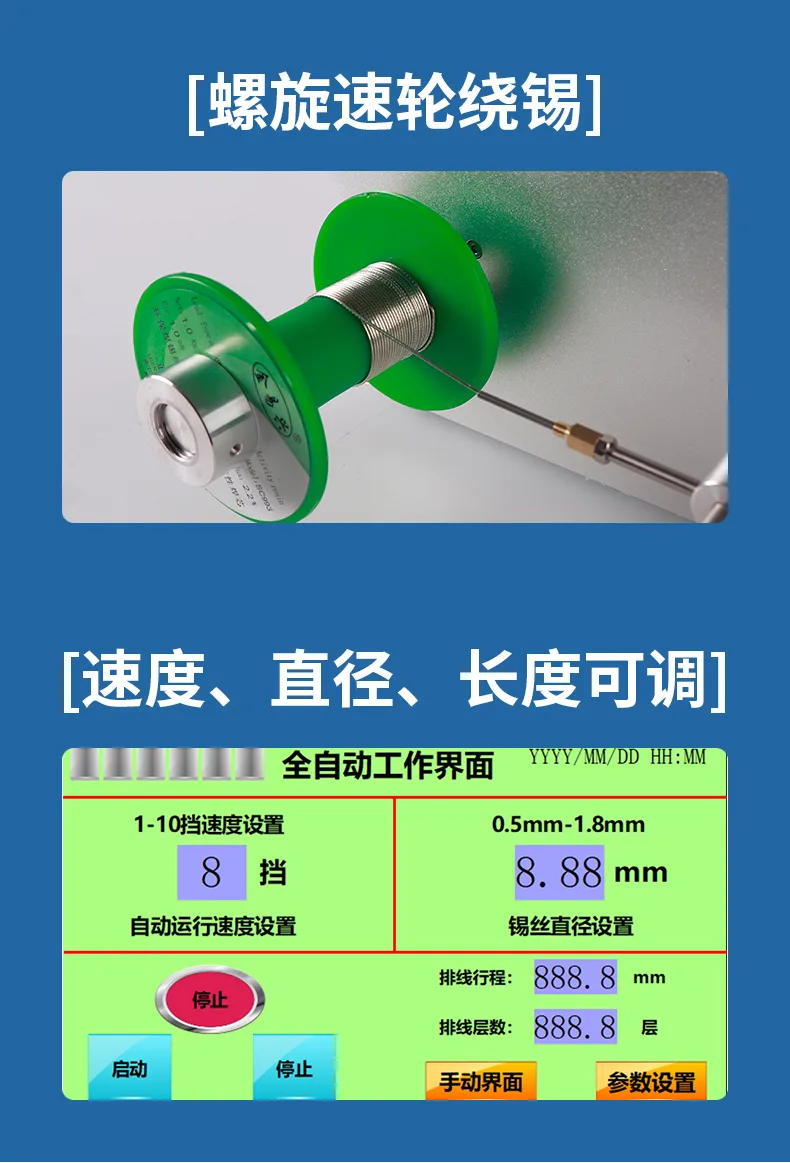

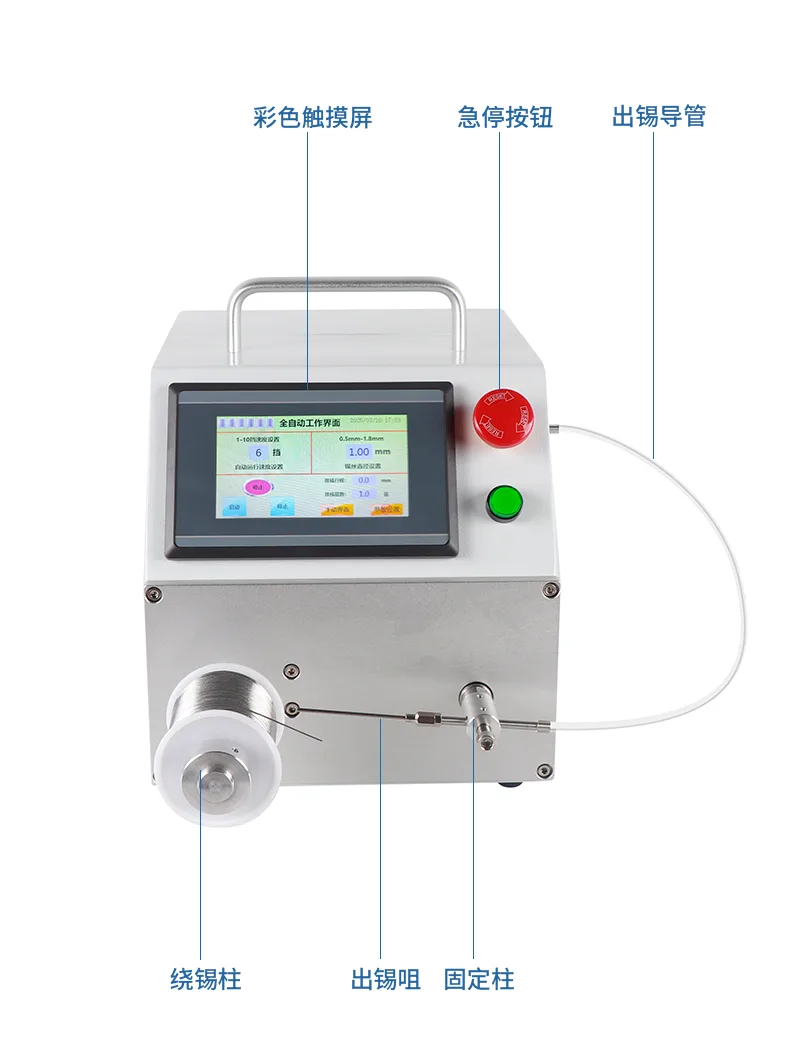

• Colour touchscreen; parameters can be saved and password-protected
• Adjustable speed (10 levels), wire diameter and traverse length / layers
• Automatic no-solder and solder-jam alarms (sensors built in)
• Stepper motor drive; spool shaft diameter 12–50 mm; AC 220 V / 50 Hz
