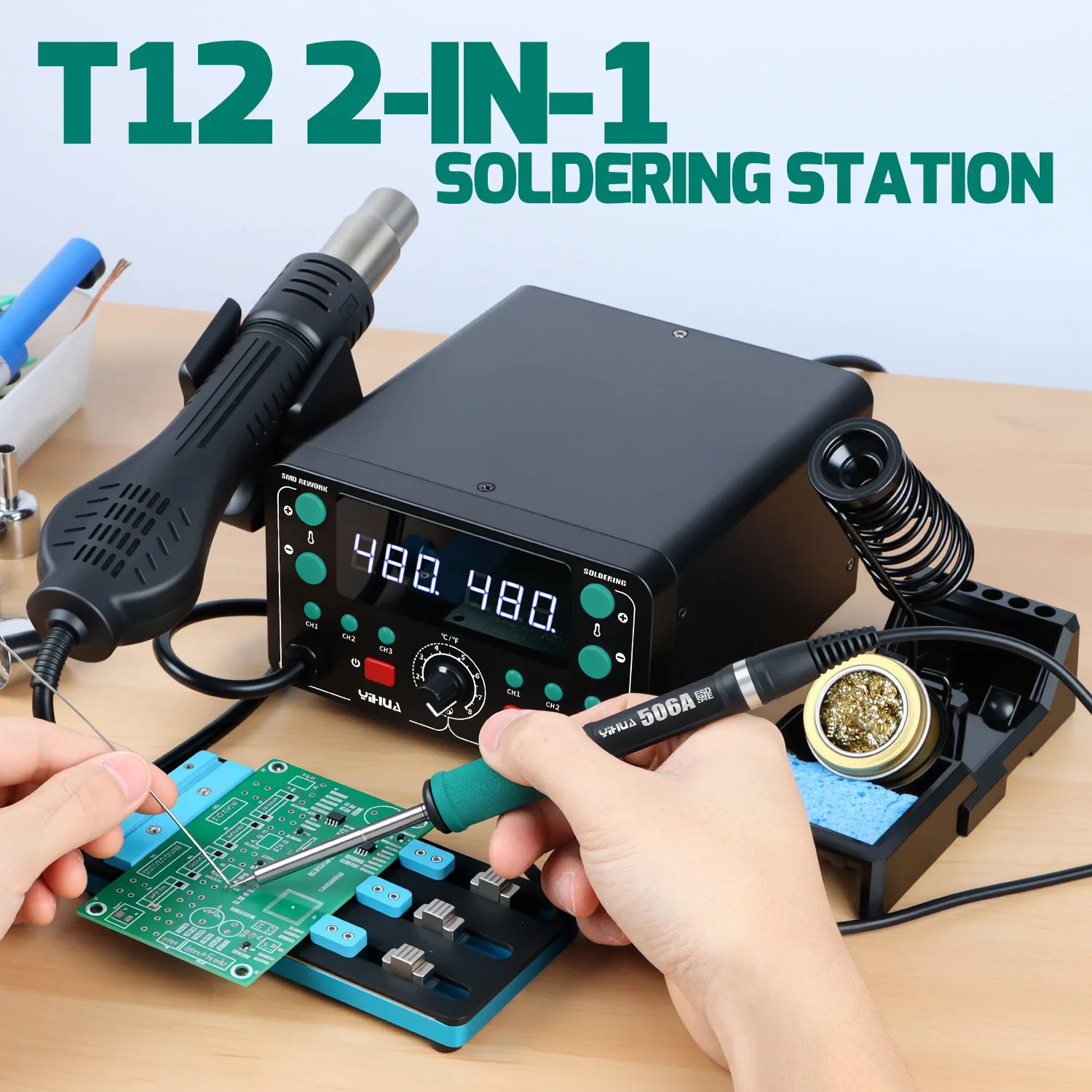

YIHUA 902D-IV Hot Air Station (T12 Iron Handle)

Model number: 902D IV Rated voltage range: 220V～240V~

• Rated
• Frequency: 50Hz
• Rated power: 775W
• Main unit dimensions: L180xW147xH95mm ±5mm
• Operating ambient temperature: 0～40℃/32℉～104℉ Hot Air Rework Station Air
• Delivery: Brushless fan with smooth air delivery Air Volume : ≤120L/min

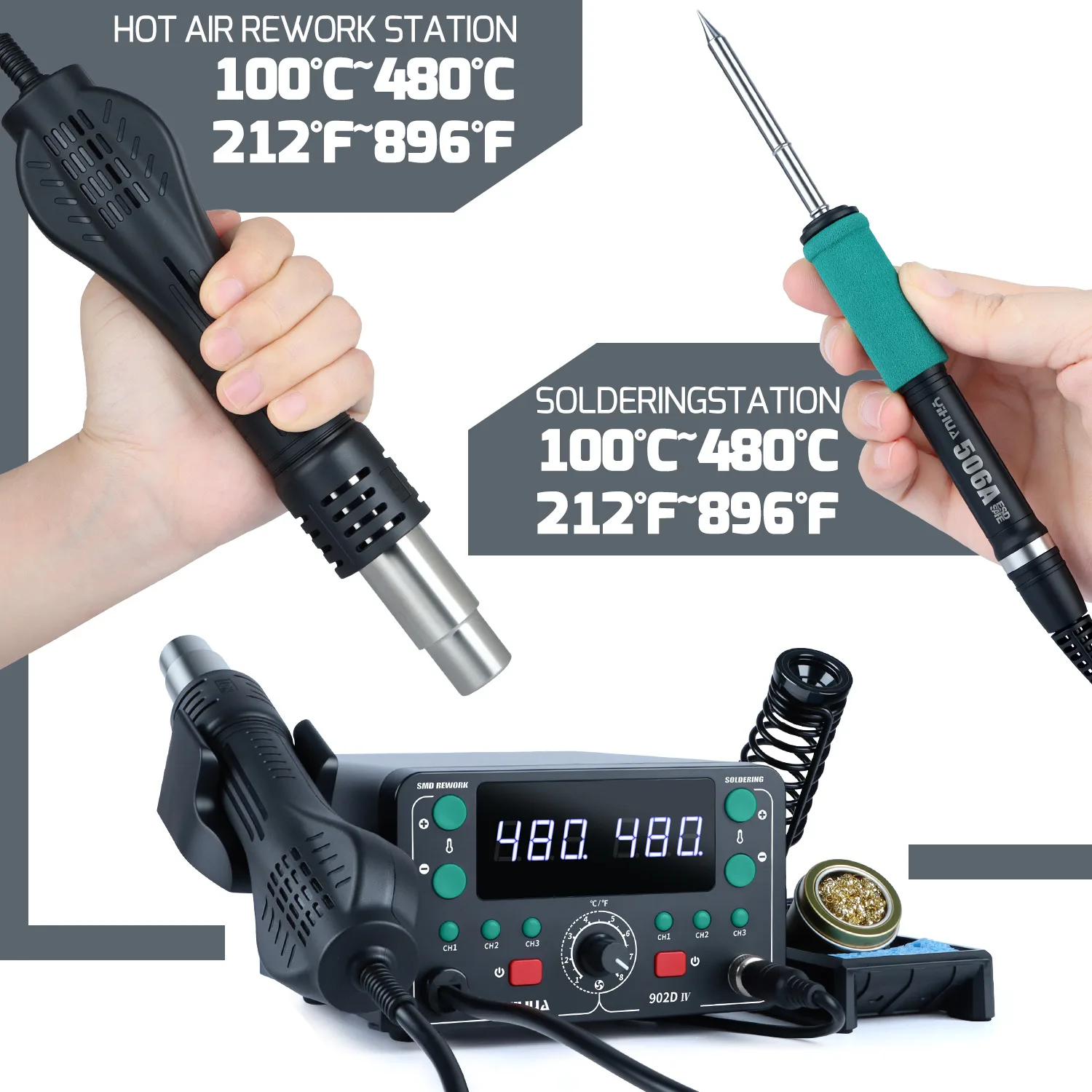

• Temperature range: 100℃～480℃/212℉～896℉
• Display: LED Soldering Station
• Temperature range: 200℃～480℃/392℉～896℉
• Display: LED Soldering tip to ground resistance: <2 ohms

• 775W High-Power Performance: Powerful 2-in-1 rework station designed for professional soldering and hot air applications.
• Hot Air Rework Station: Features a brushless fan with smooth air delivery for stable and efficient airflow.
• High Airflow Capacity: Maximum air volume of up to 120L/min, suitable for fast and effective component rework.
• Wide Hot Air Temperature Range: Adjustable from 100°C–480°C (212°F–896°F).
• LED Digital Display: Clear LED display for easy temperature monitoring and operation.
• Soldering Station: Dedicated soldering function with a wide temperature range of 200°C–480°C (392°F–896°F).
• ESD-Safe Soldering Performance: Soldering tip-to-ground resistance of <2Ω helps protect sensitive electronic components.
• Dual-Function Design: Combines hot air rework and soldering station functions in one compact unit.
• Compact Main Unit: Dimensions of approximately 180 × 147 × 95 mm, suitable for workbenches with limited space.
• Wide Applications: Ideal for SMD/PCB repair, IC removal, component replacement, electronics maintenance, DIY projects, and professional servicing.
• Reliable Operation: Designed for ambient operating temperatures from 0°C to 40°C (32°F–104°F).
