Automation soldering tips for robots and automatic soldering machines, 15 versions, 2–10 mm, 15 mm bore.
Quantity

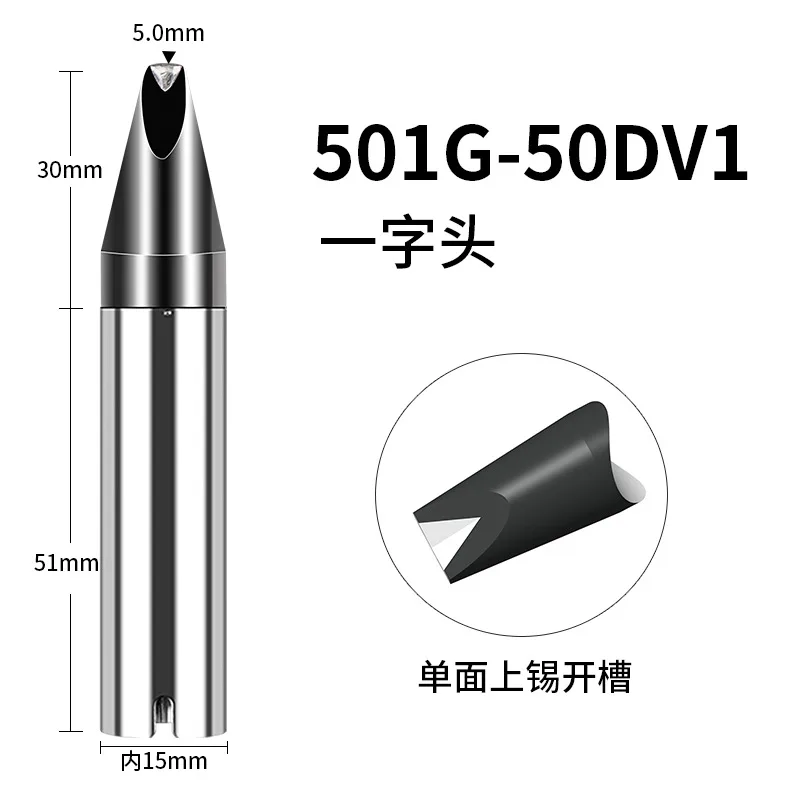

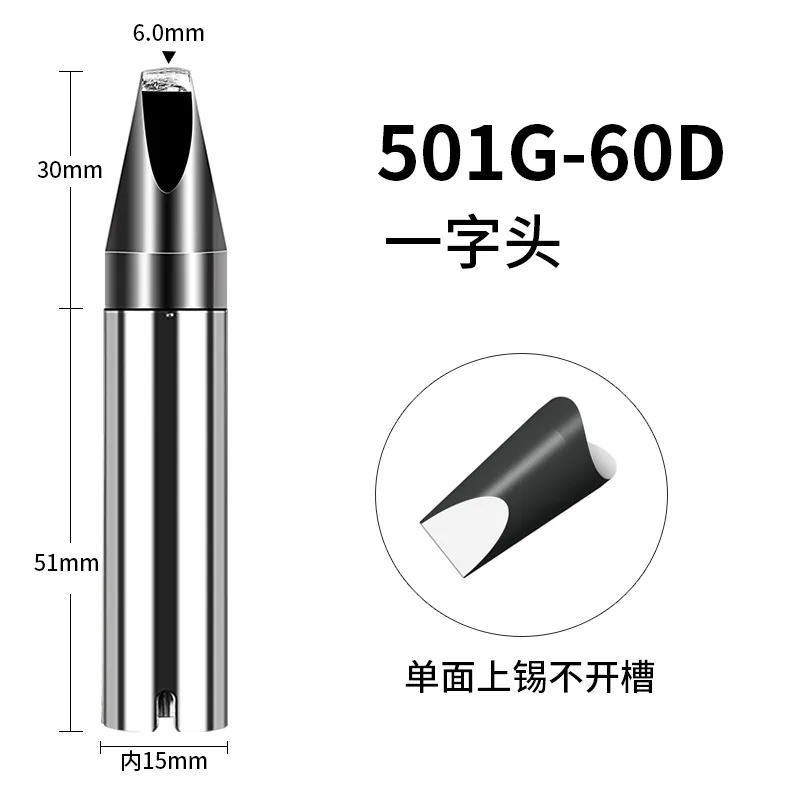

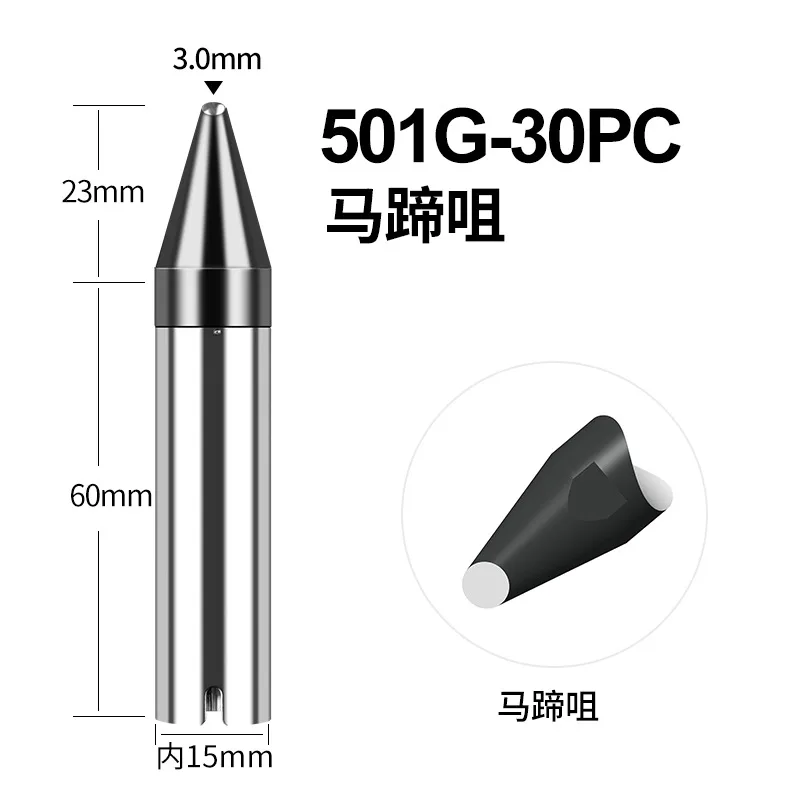

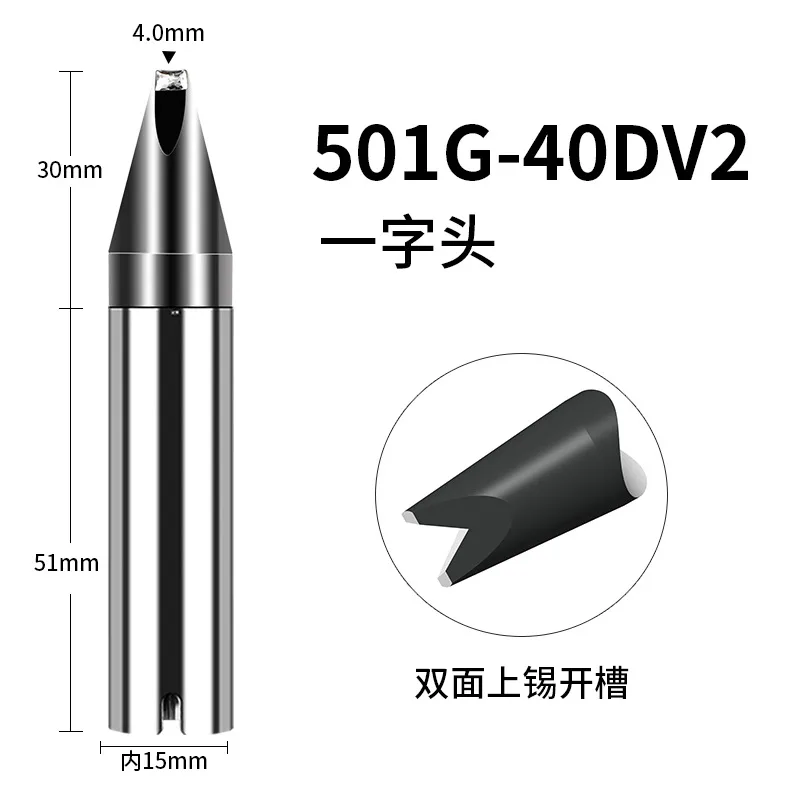

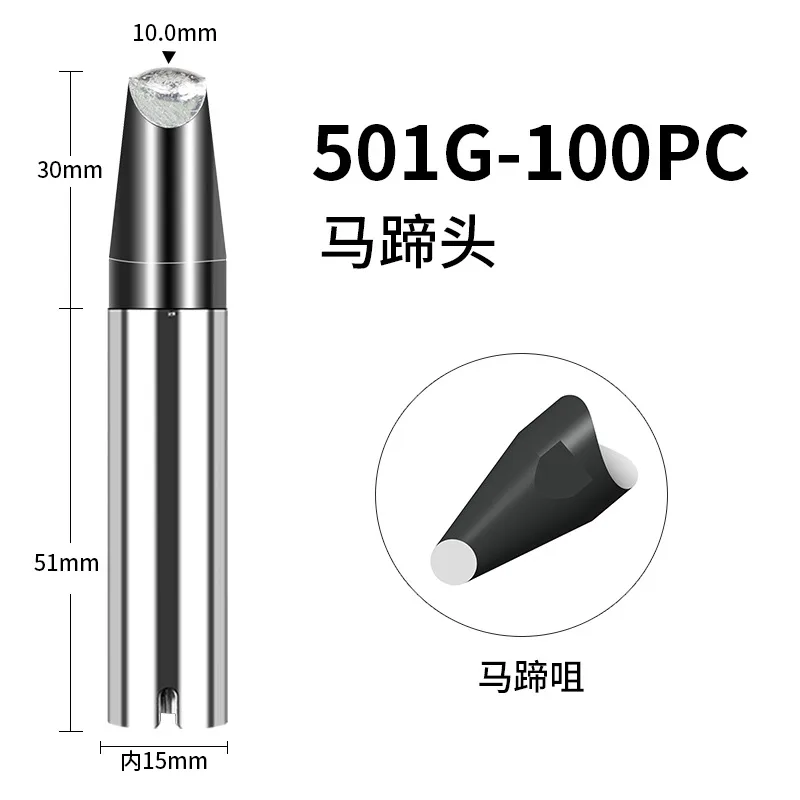

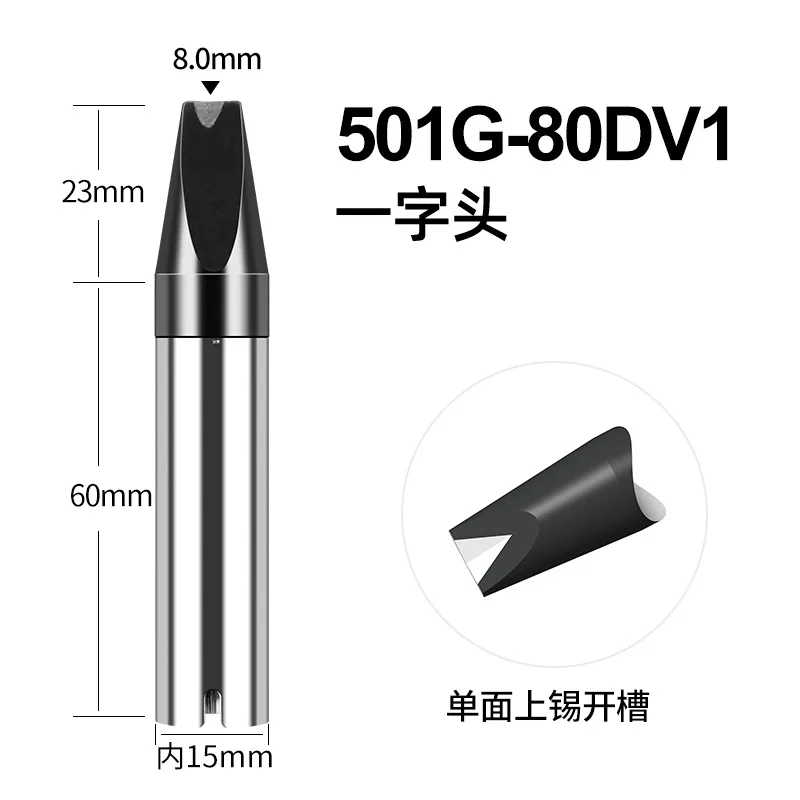

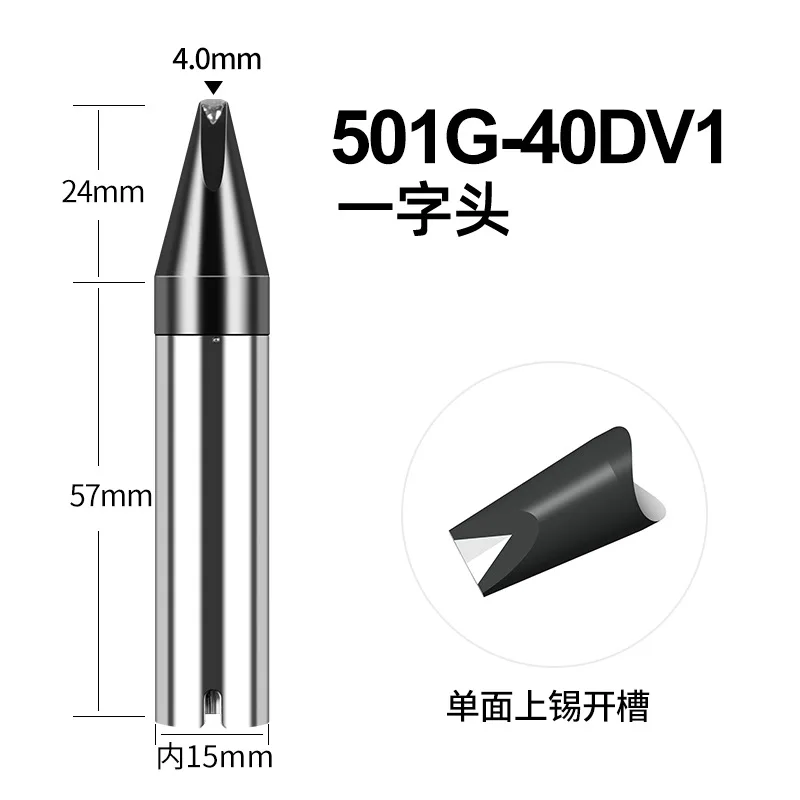

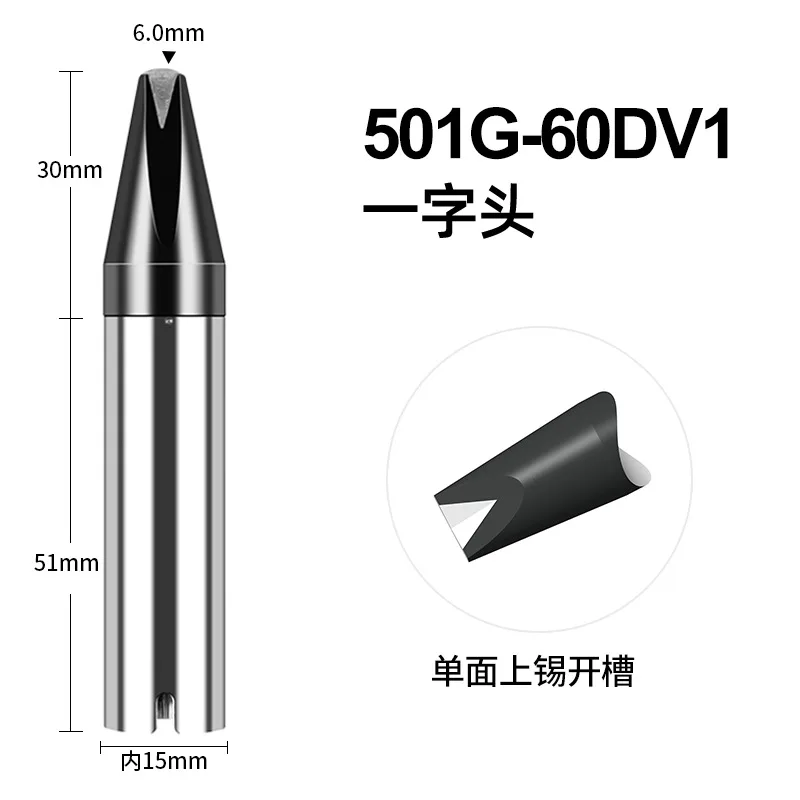

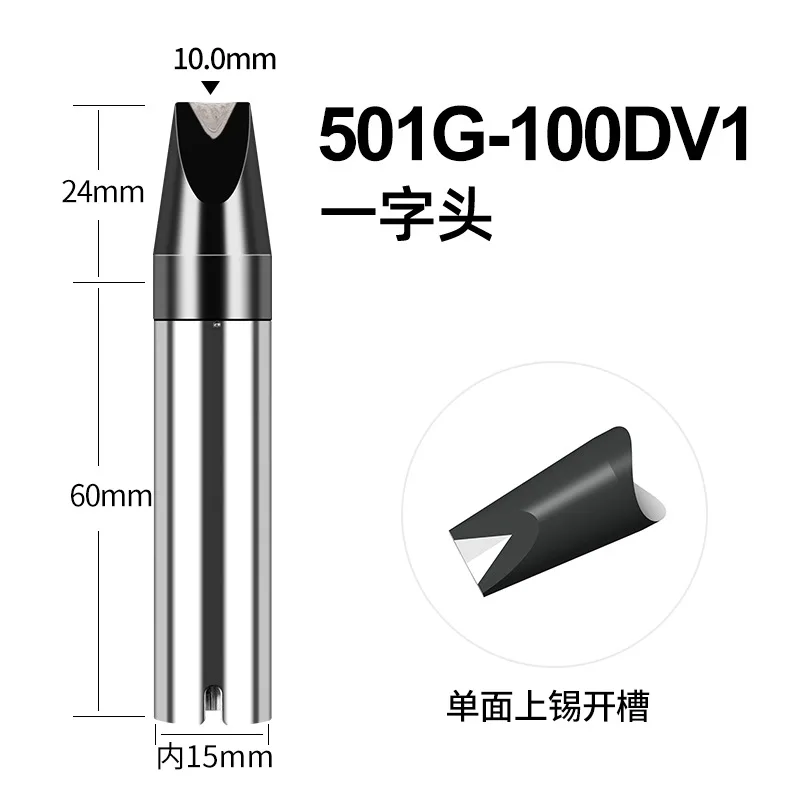

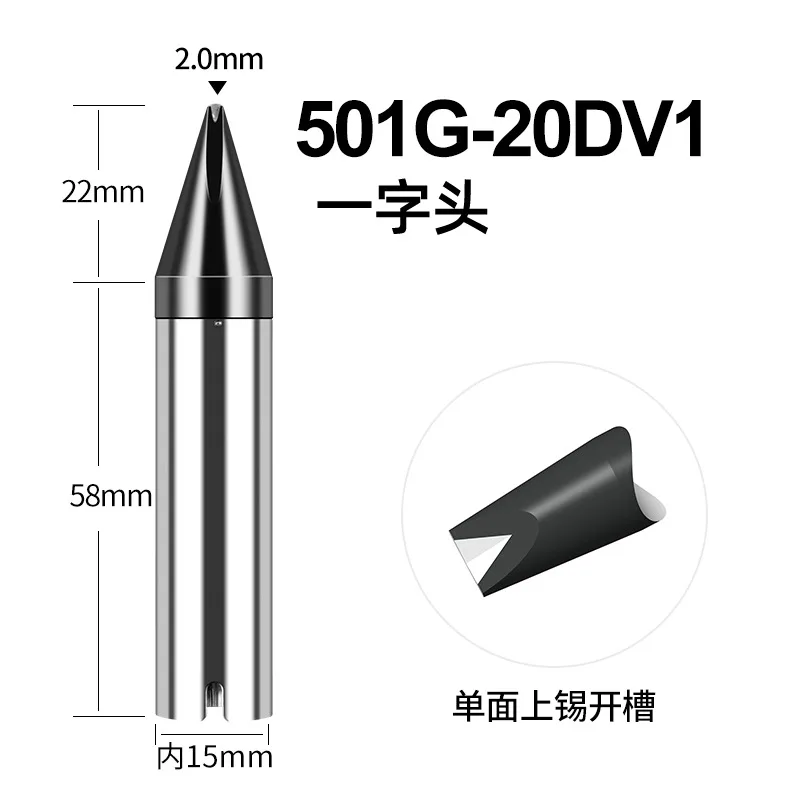

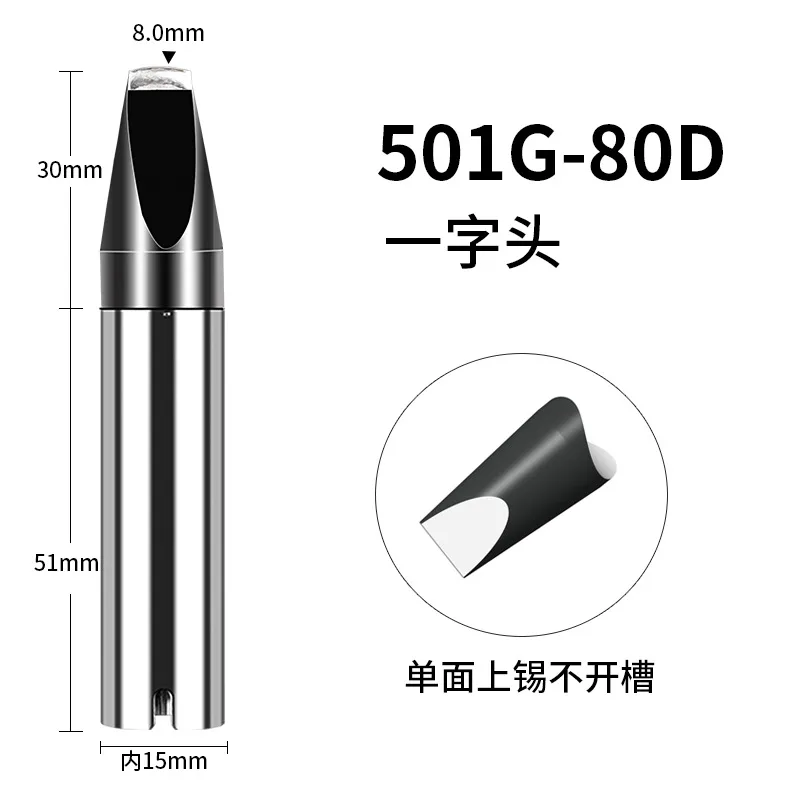

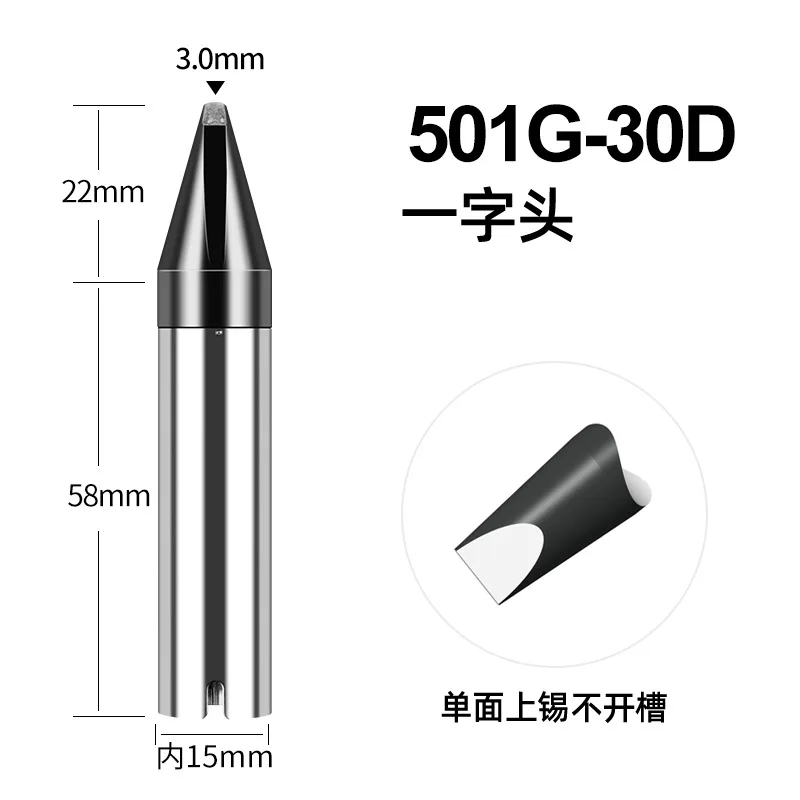

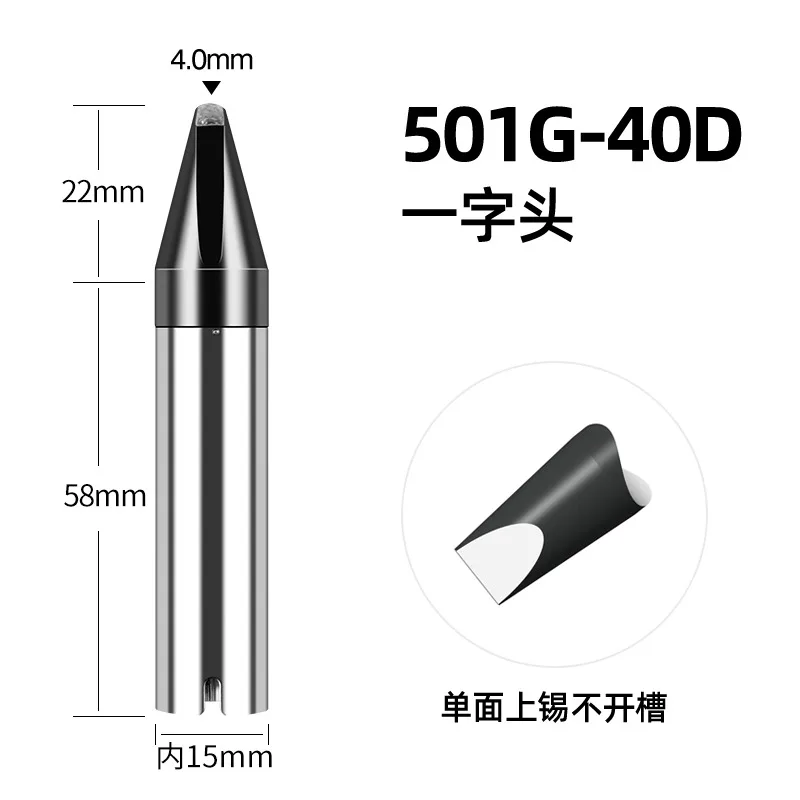

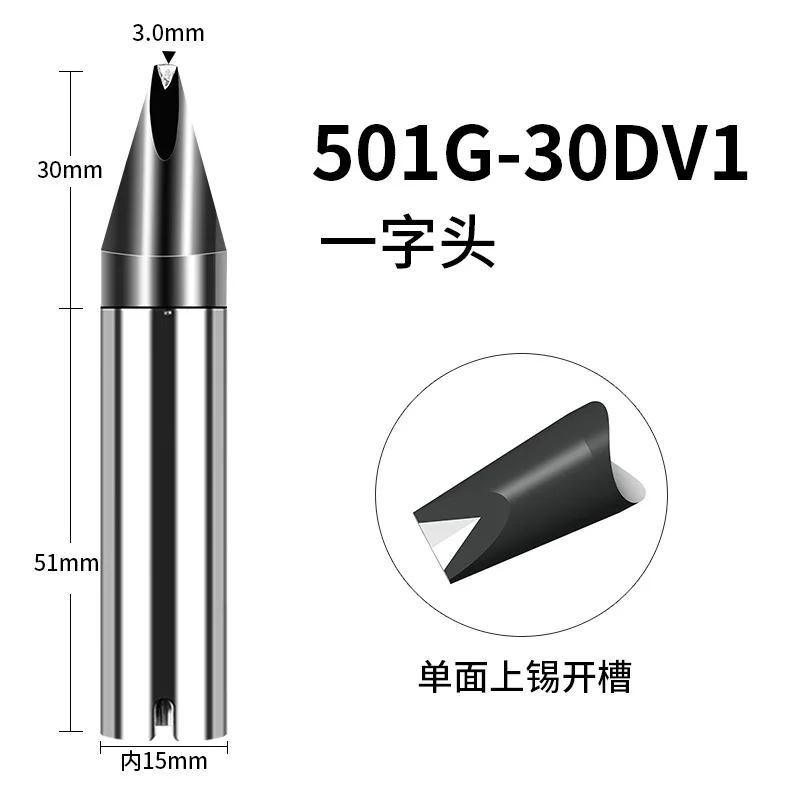

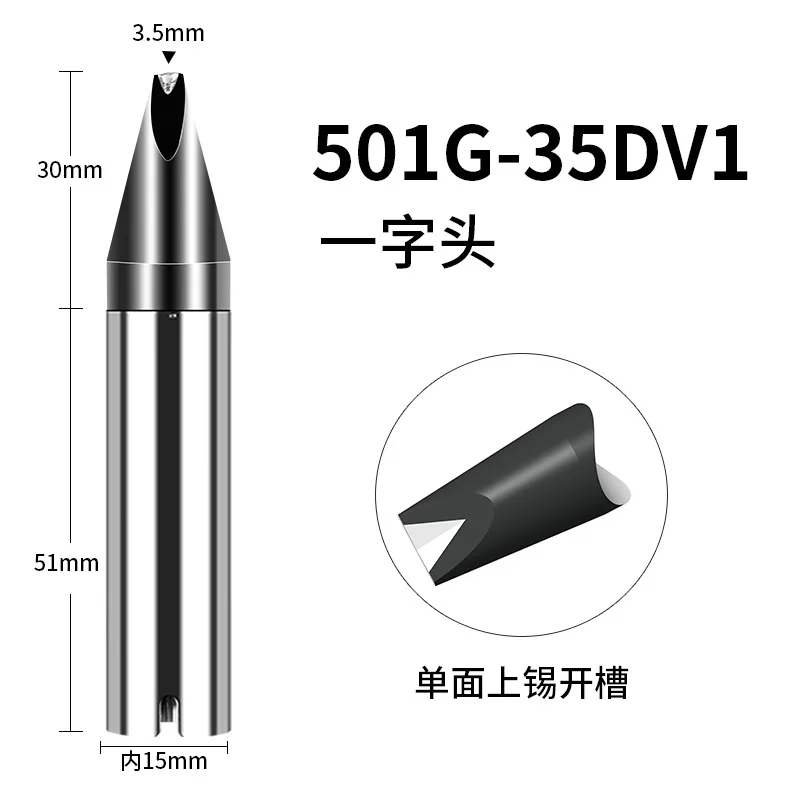

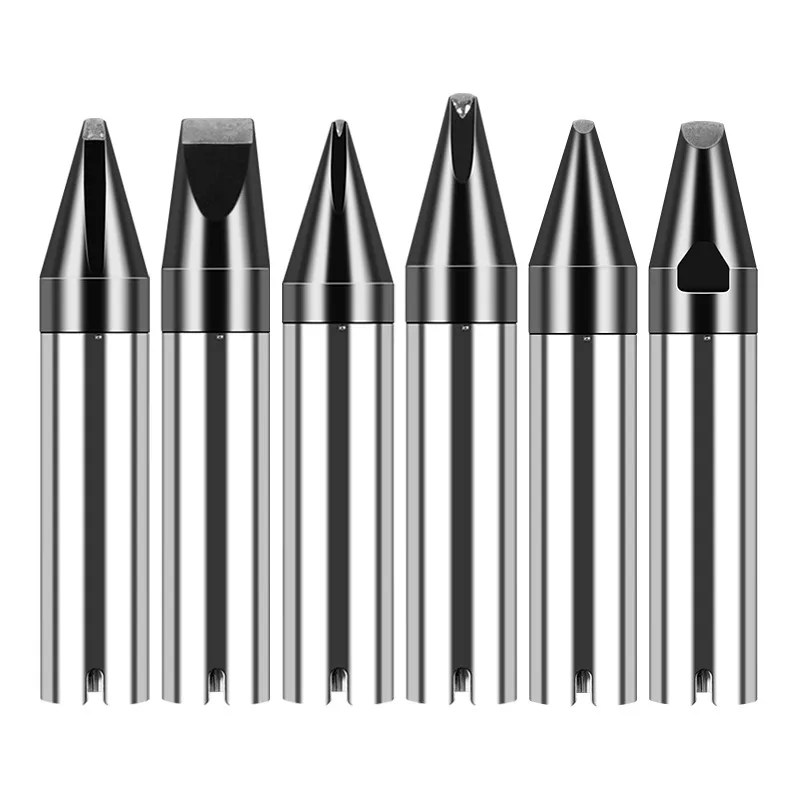

CHUERA 501G series are soldering tips for automatic soldering machines and soldering robots (501G type), in chisel and bevel shapes. 15 versions are listed: single-slot chisel 501G-20DV1, 30DV1, 35DV1, 40DV1, 50DV1, 60DV1, 80DV1 and 100DV1 (2.0–10.0 mm); double-side tinned slotted chisel 501G-40DV2 (4.0 mm); no-slot chisel 501G-30D, 40D, 60D and 80D (3.0–8.0 mm); and bevel (hoof) 501G-30PC (3.0 mm) and 501G-100PC (10.0 mm).
| Compatibility | Automatic soldering machines / soldering robots (501G type) |
|---|---|
| Tip Material | Copper substrate |

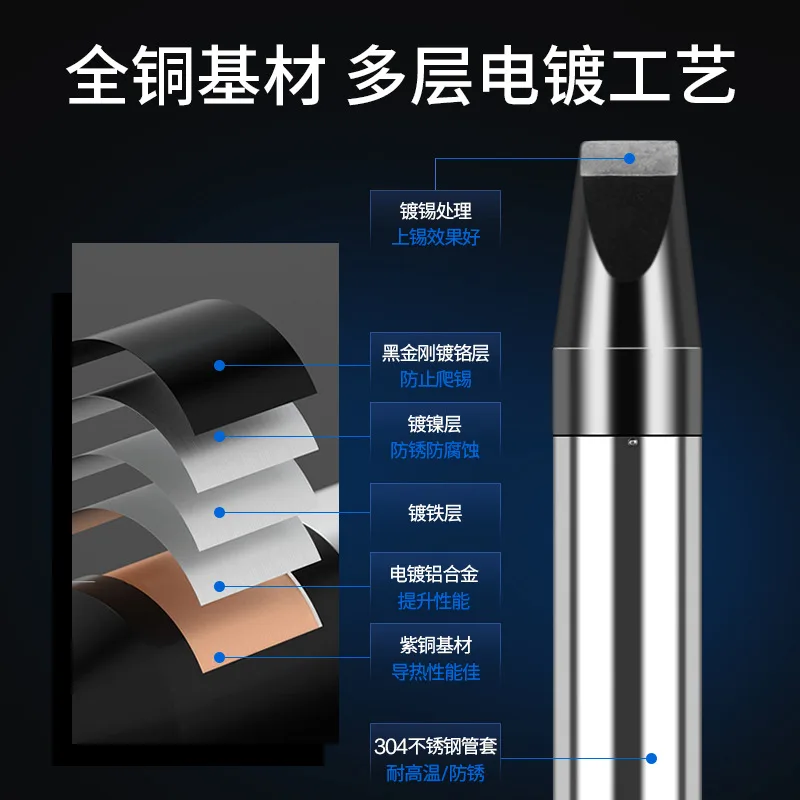

| Plating | Multi-layer: iron alloy, iron, nickel, black chrome anti-creep layer, tinned tip |
| Sleeve | 304 stainless steel |
| Inner Diameter | 15 mm |
| Overall Length | Approx. 81–84 mm |
| Tip Width Range | 2–10 mm |
| Tip Types | D chisel (no slot), DV1 chisel (single slot), DV2 chisel (double-side, slotted), PC bevel (hoof) |
| Versions | 15 |
