Automation soldering tips for robots and automatic machines in chisel, bevel and USB shapes, 31 versions, 11 mm bore.
Quantity

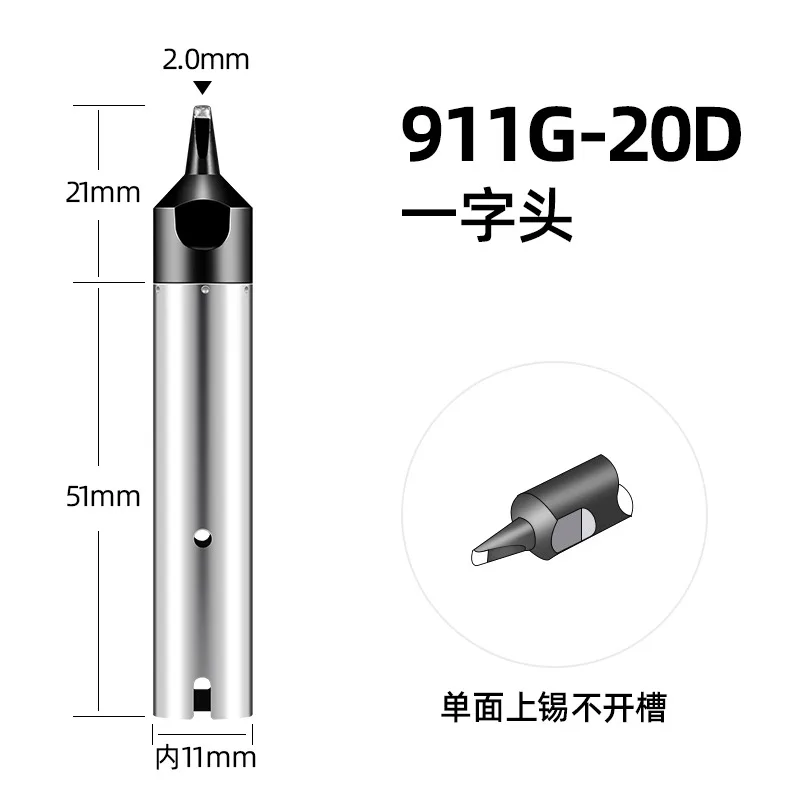

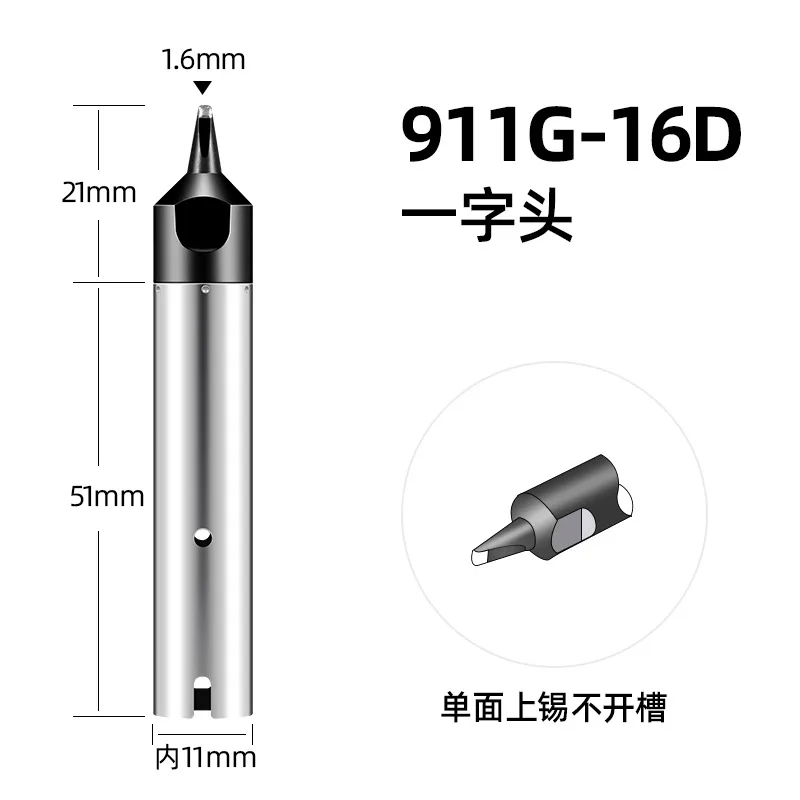

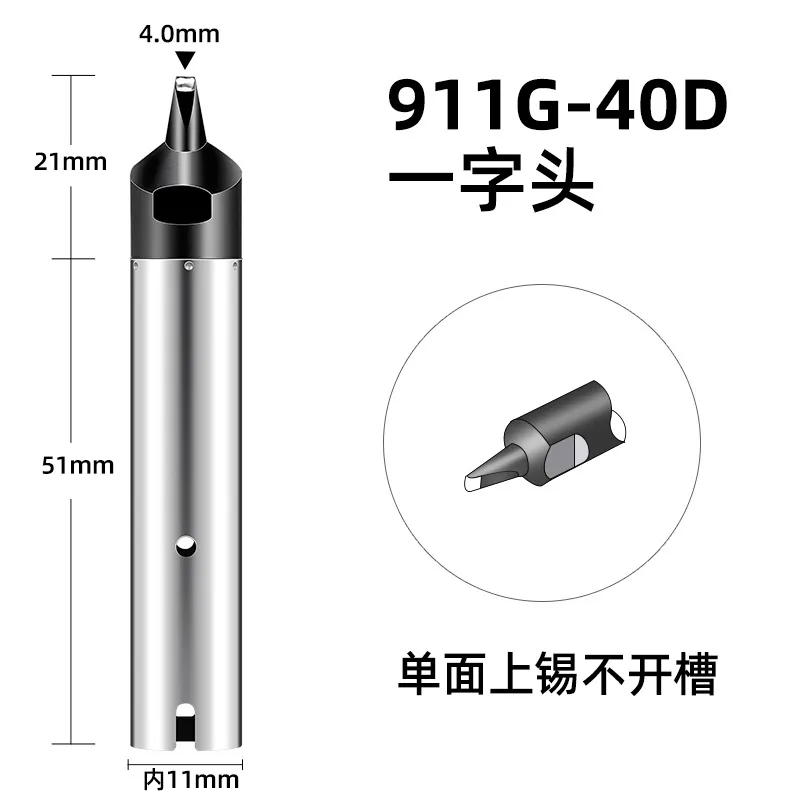

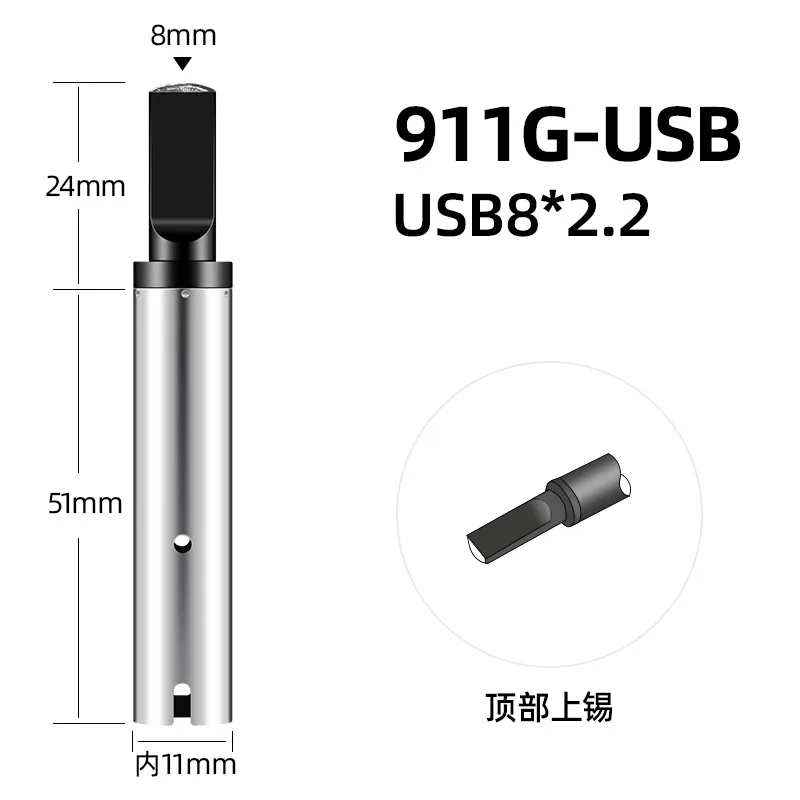

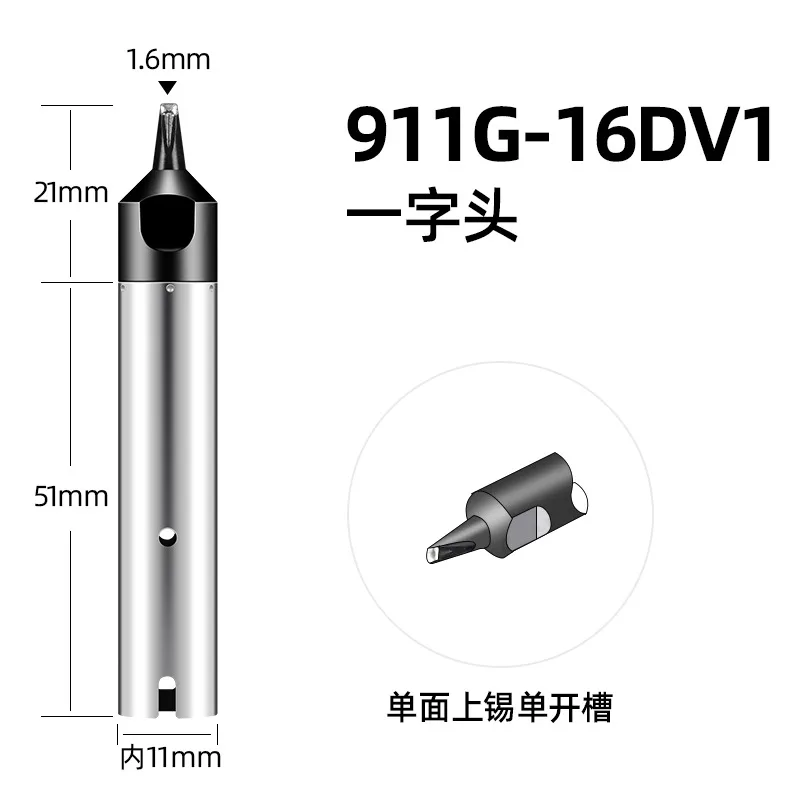

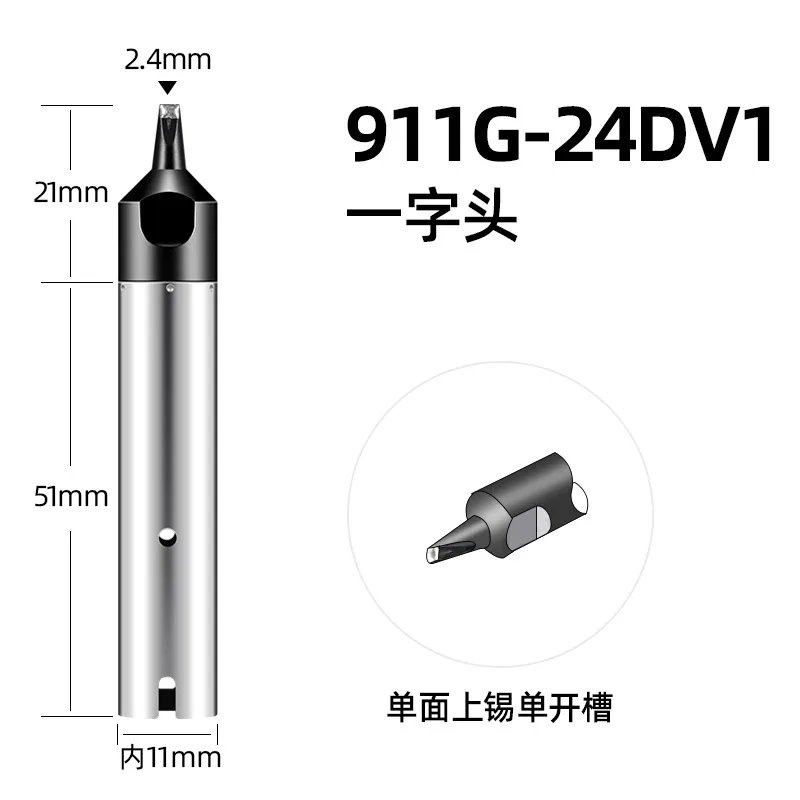

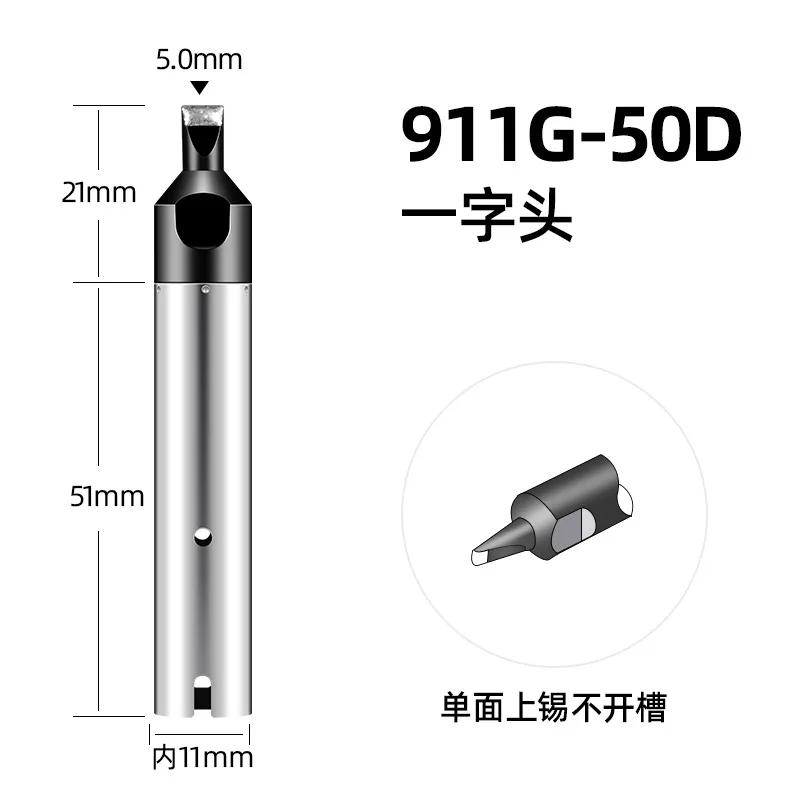

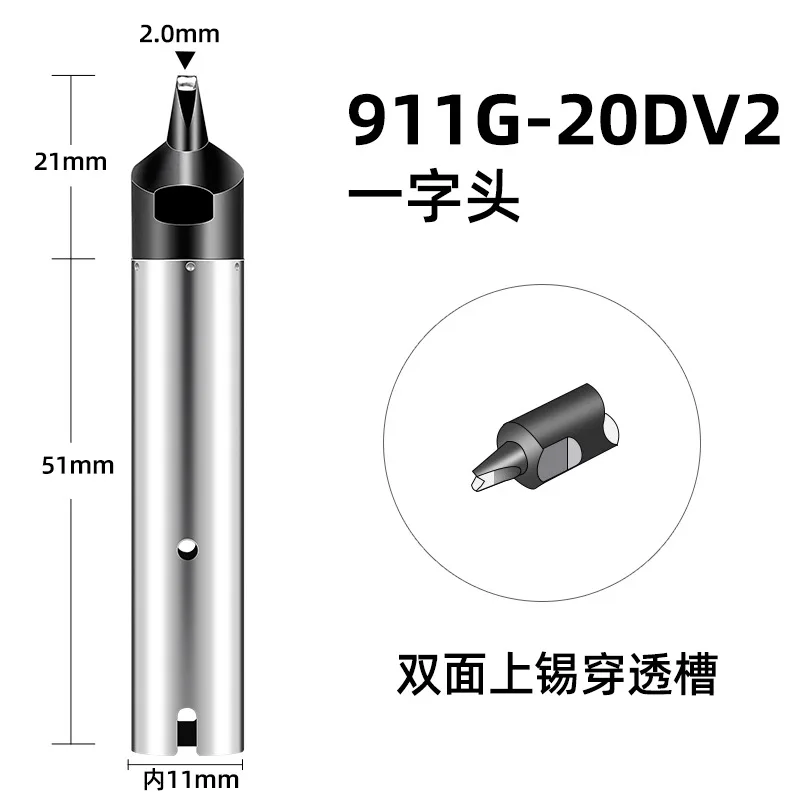

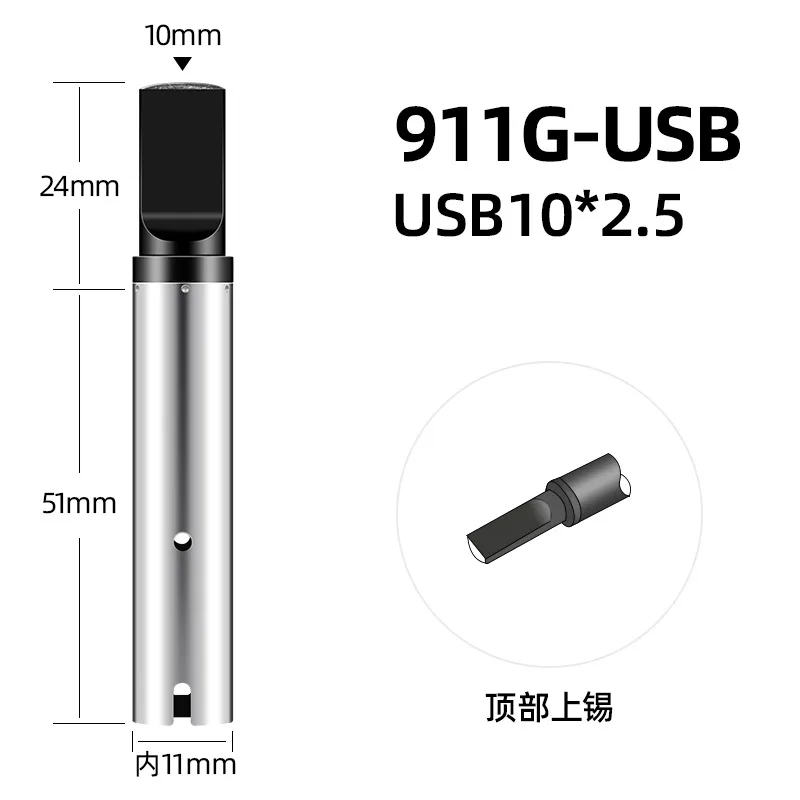

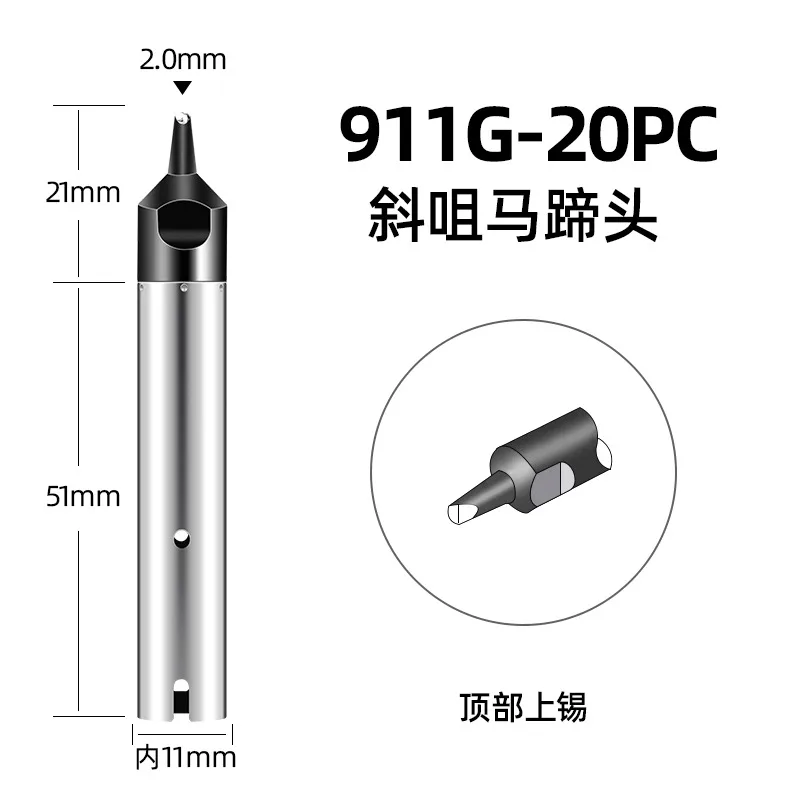

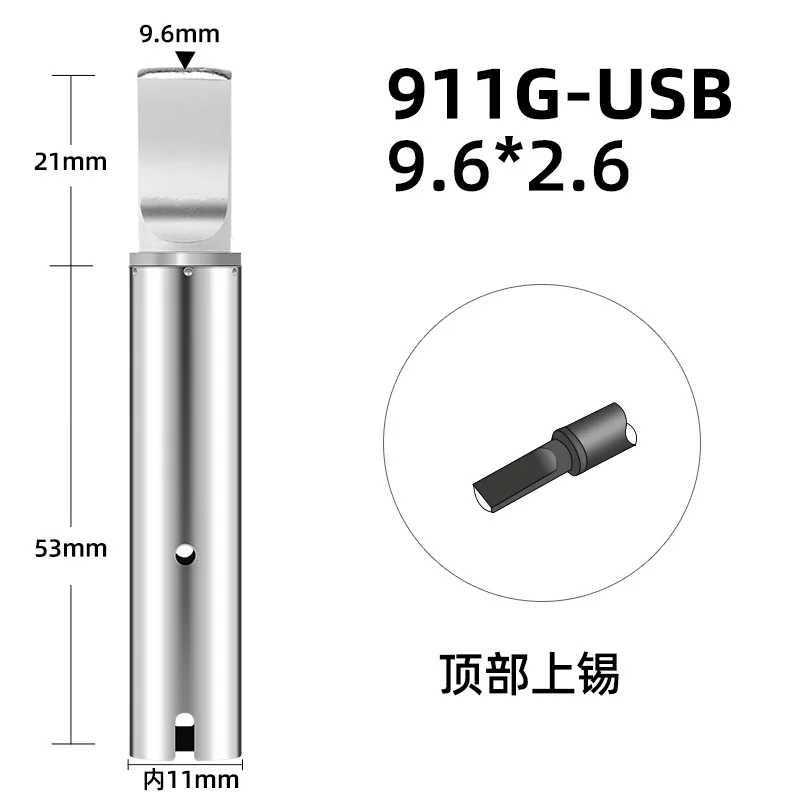

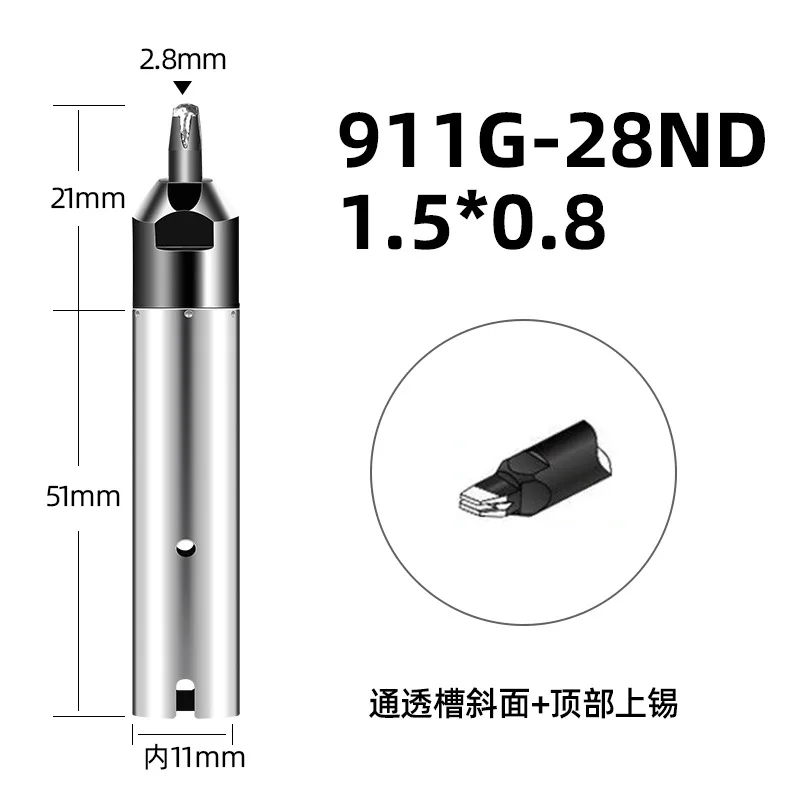

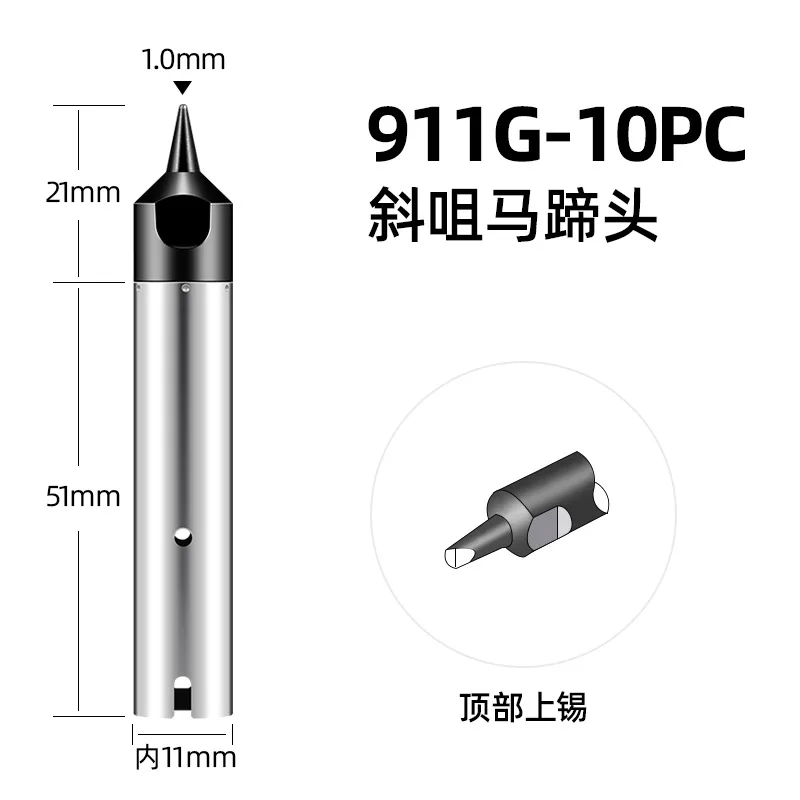

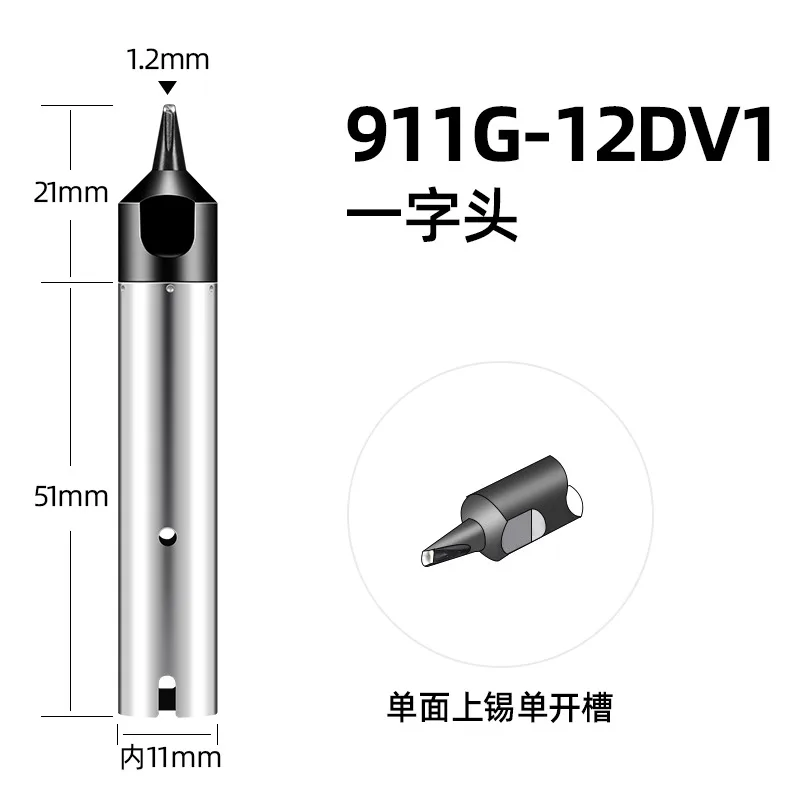

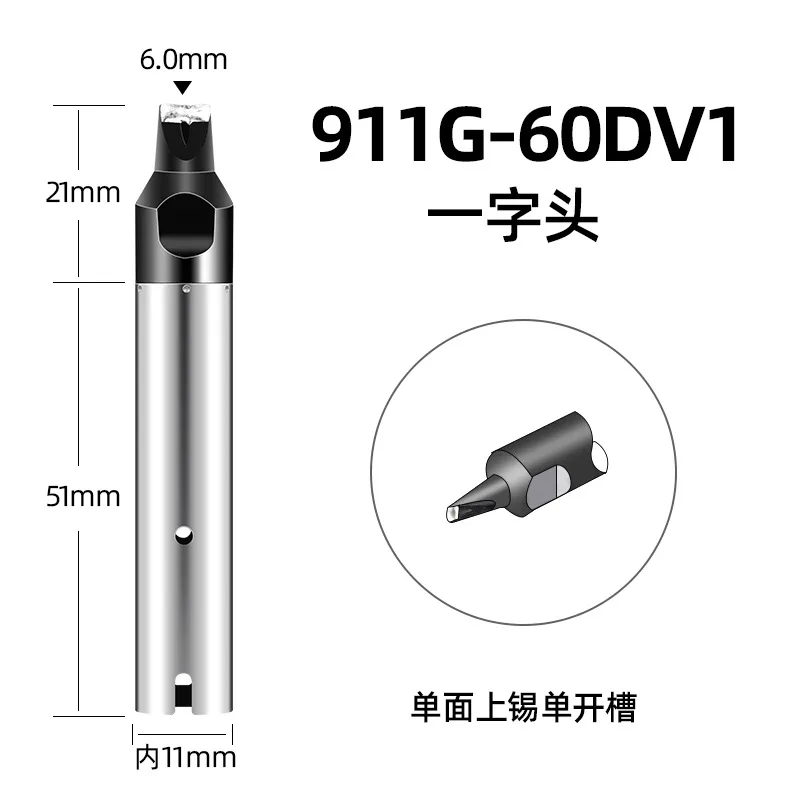

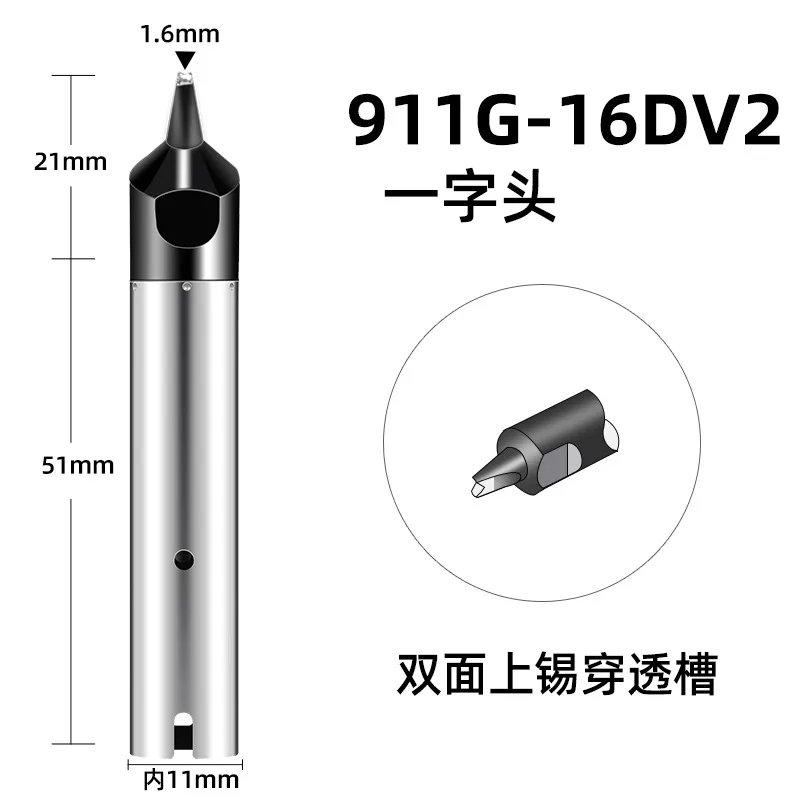

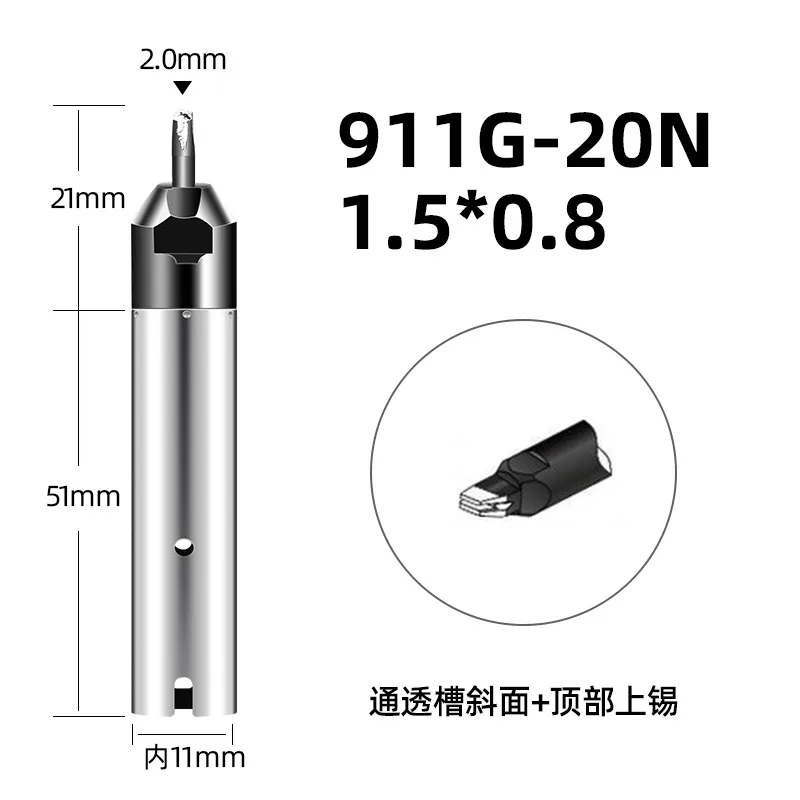

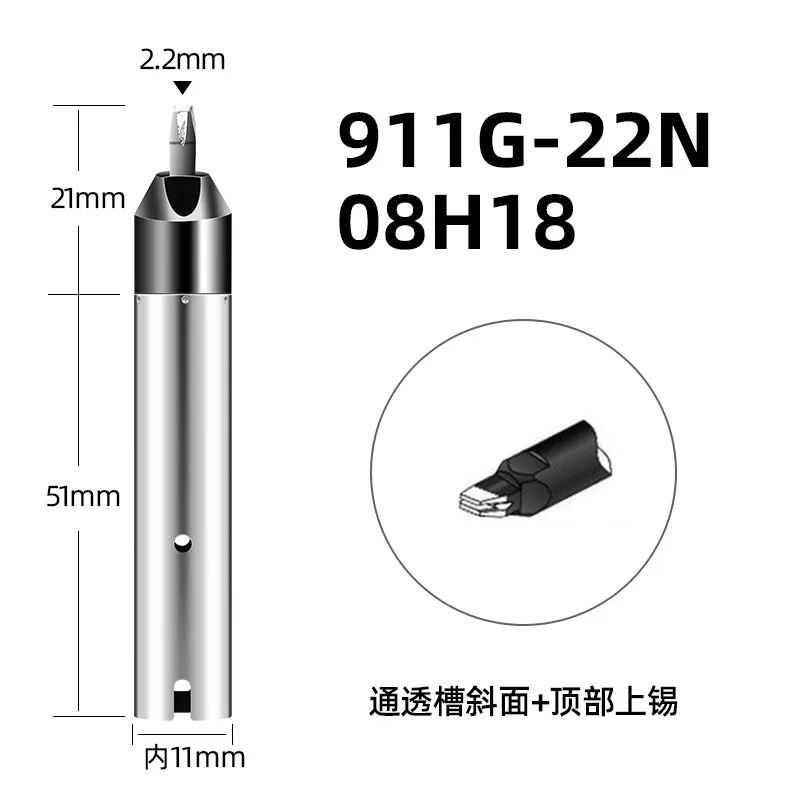

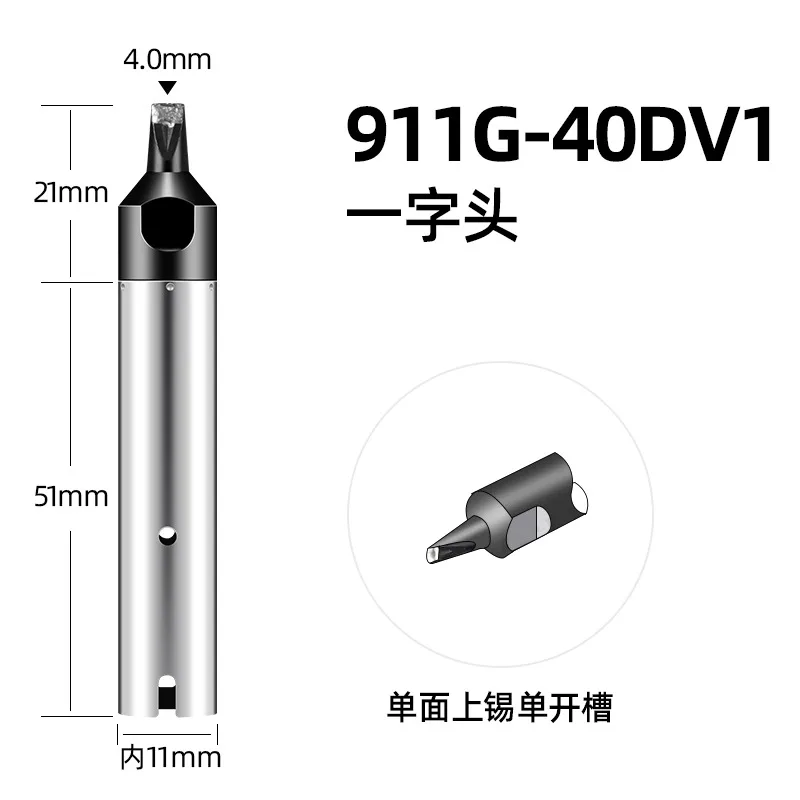

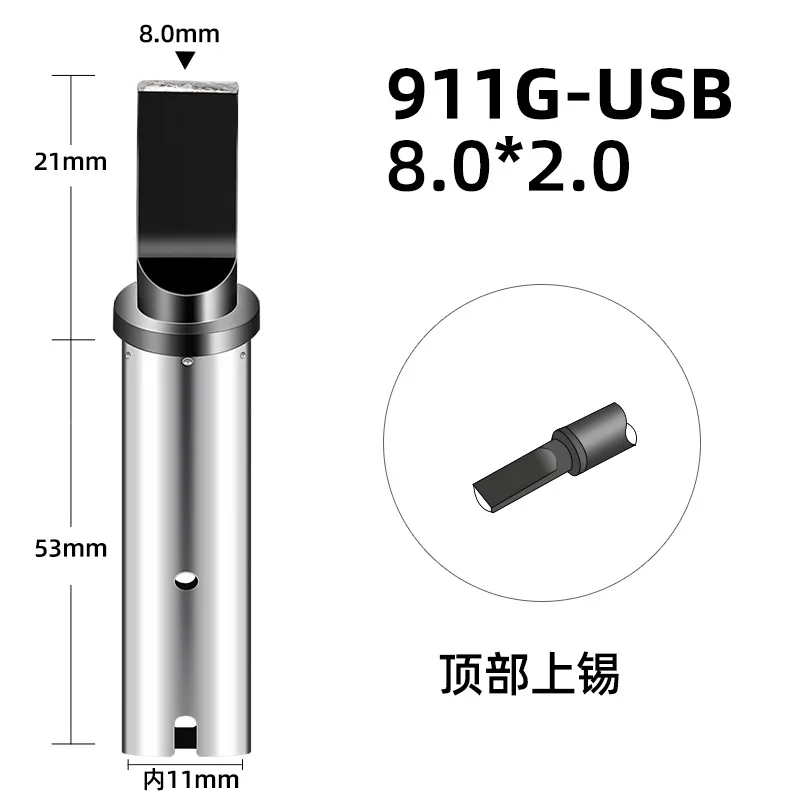

CHUERA 911G series are soldering tips for automatic soldering machines and robots (911G type), in chisel, bevel and USB shapes. 31 versions are listed: single-slot chisel 911G-12DV1, 16DV1, 20DV1, 24DV1, 30DV1, 40DV1, 50DV1 and 60DV1 (1.2–6.0 mm); double-side through-slot chisel 911G-16DV2, 20DV2, 24DV2, 30DV2, 40DV2 and 50DV2 (1.6–5.0 mm); no-slot chisel 911G-16D, 20D, 24D, 40D and 50D (1.6–5.0 mm); angled bevel 911G-10PC, 16PC, 20PC, 24PC and 30PC (1.0–3.0 mm); through-slot bevel 911G-20N, 22N and 28N (2.0, 2.2, 2.8 mm); and USB tips 911G-USB8.0-2.0, USB8.0-2.2, USB9.6-2.6 and USB10-2.5.
| Compatibility | Automatic soldering machines / soldering robots (911G type) |
|---|---|
| Tip Material | Copper substrate |
| Plating | Multi-layer: iron alloy, iron, nickel, black chrome anti-creep layer, tinned tip |
| Sleeve | 304 stainless steel |
| Inner Diameter | 11 mm |
| Tip Width Range | 1–10 mm |
| Versions | 31 |
No features listed for this product.
Warranty terms for this product have not been published yet.
No reviews yet
Be the first to review the CHUERA 911G Series Lead-free Soldering Tips.
