CHUERA 3800 Automatic Soldering Station

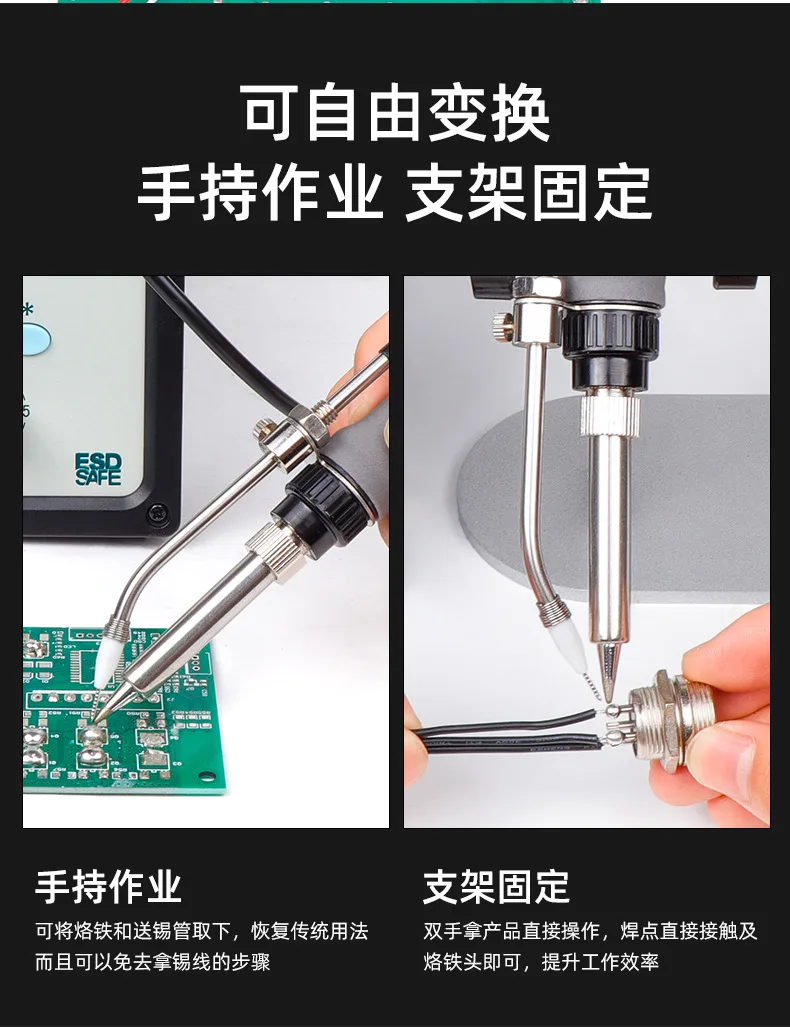

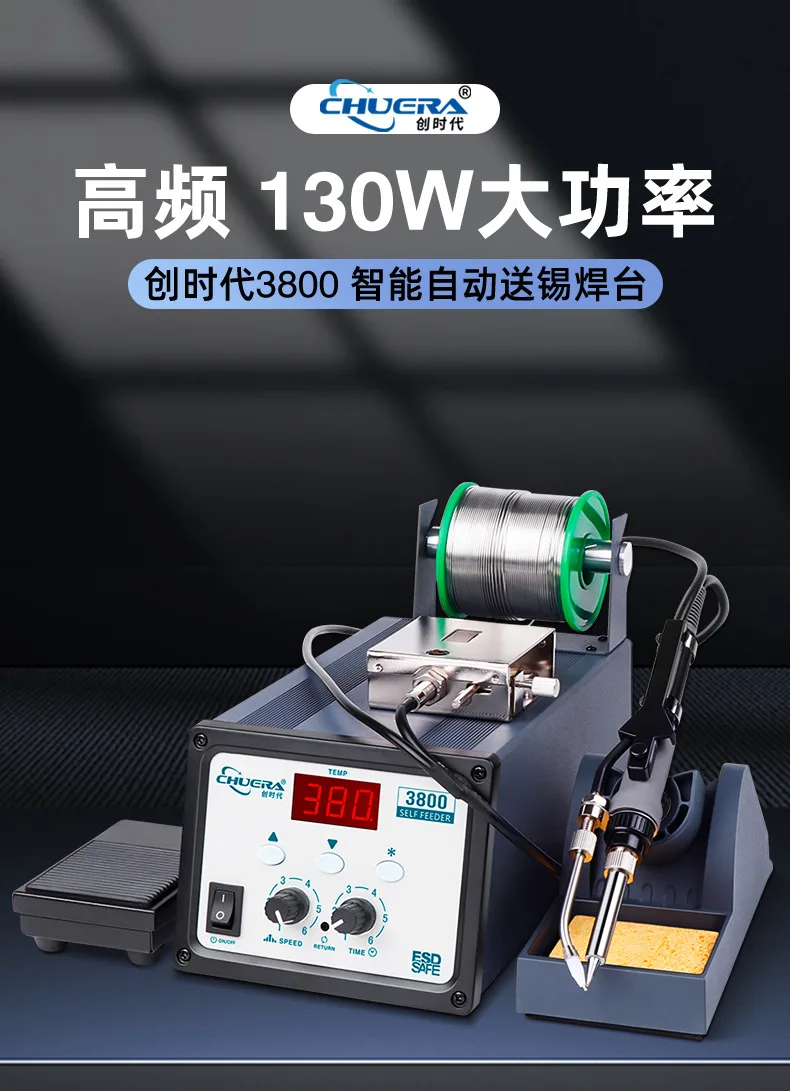

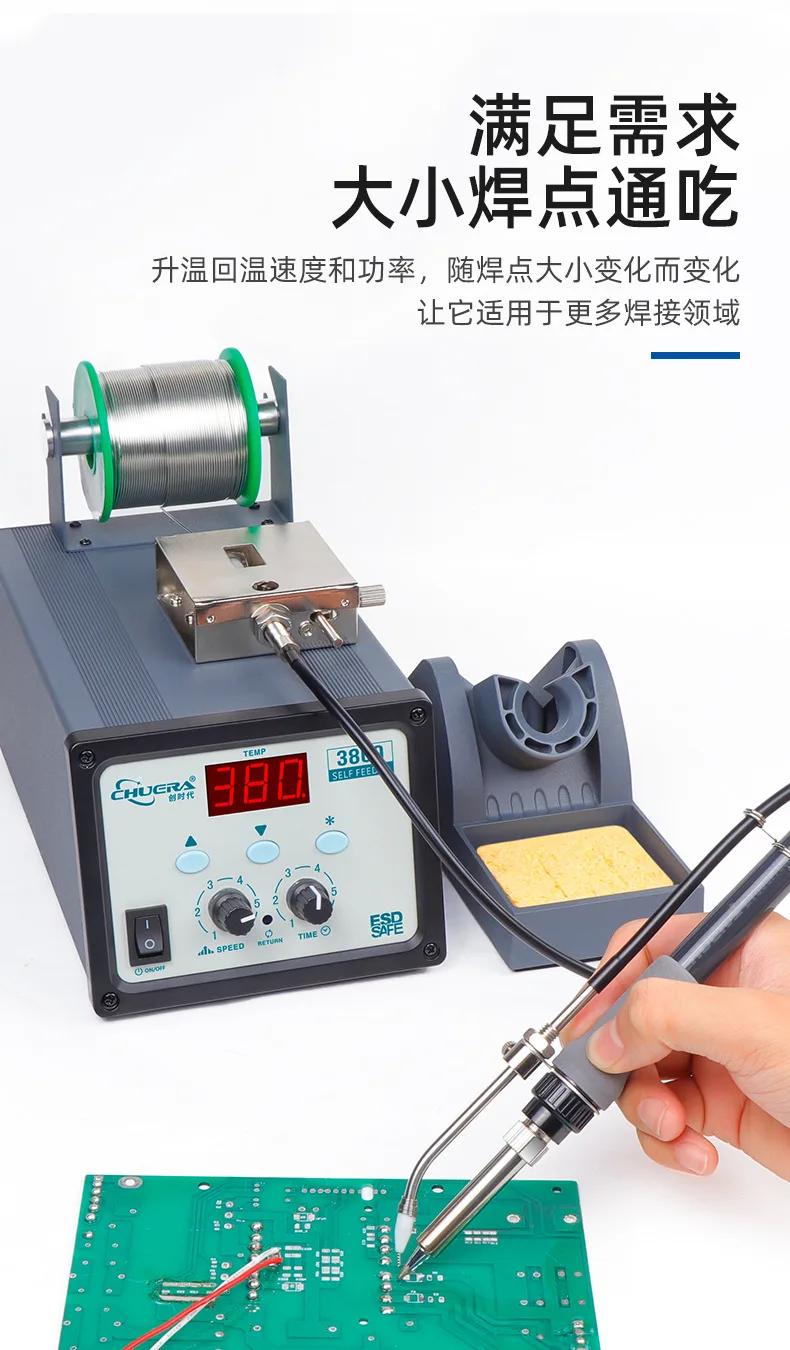

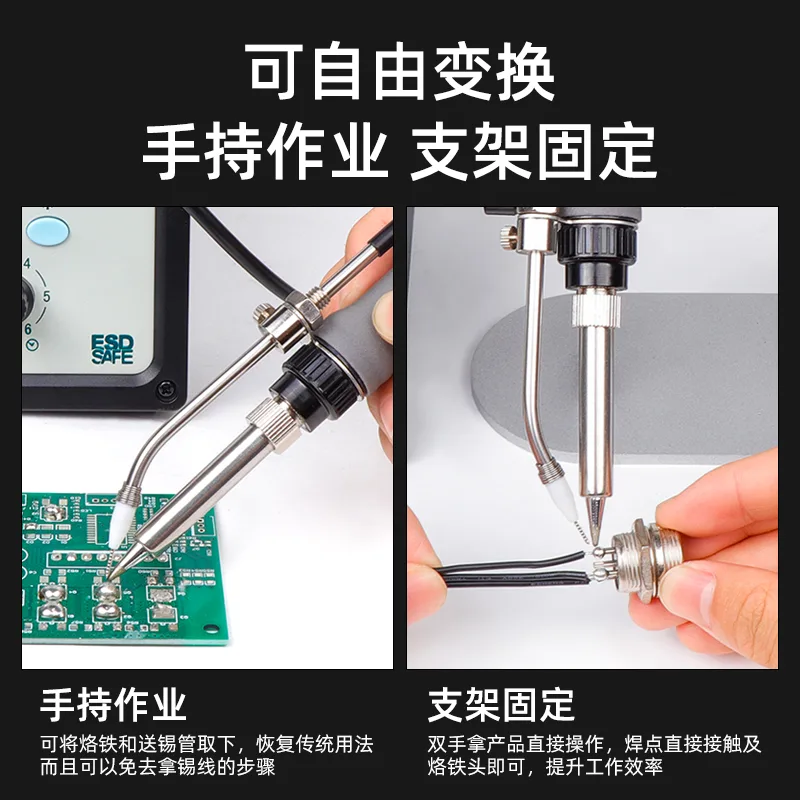

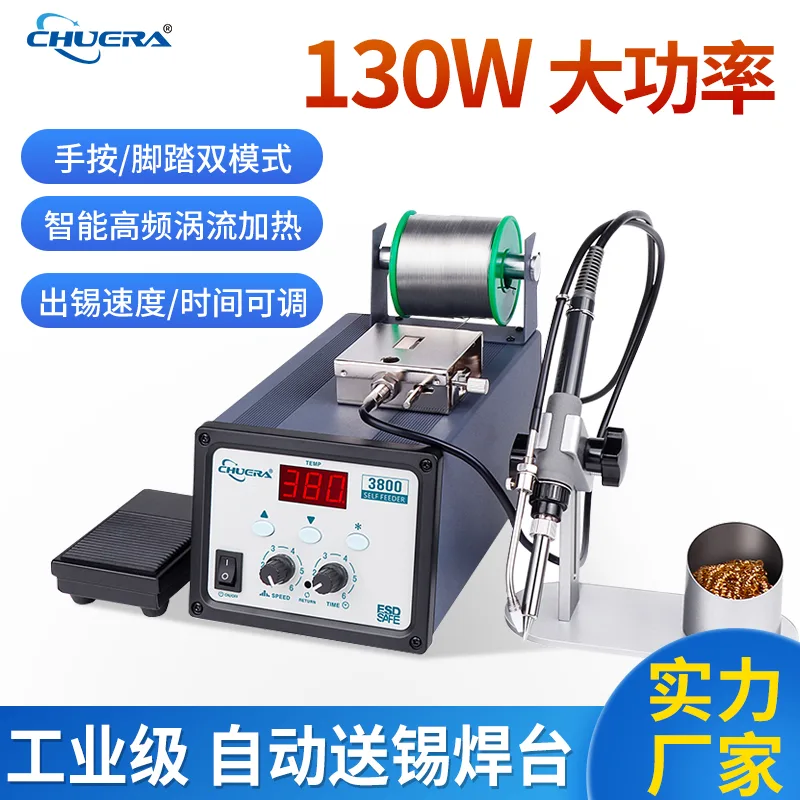

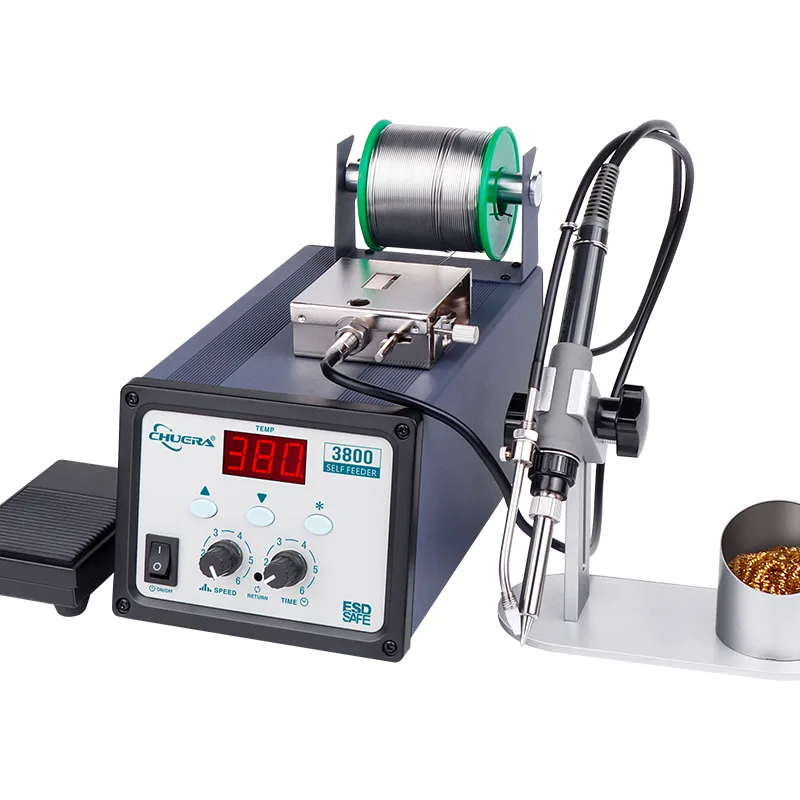

The CHUERA 3800 is an industrial 130 W high-frequency soldering station with a built-in stepper-motor solder wire feeder for production-line soldering. Solder feed is triggered by foot pedal or handle button depending on version, and the iron can be used hand-held or fixed in the stand.

Key features

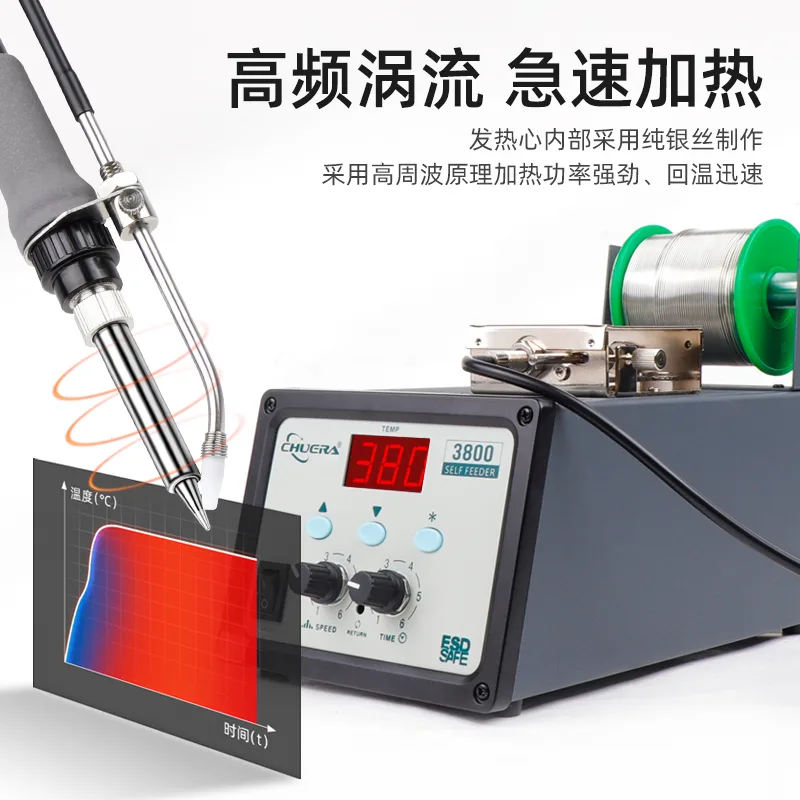

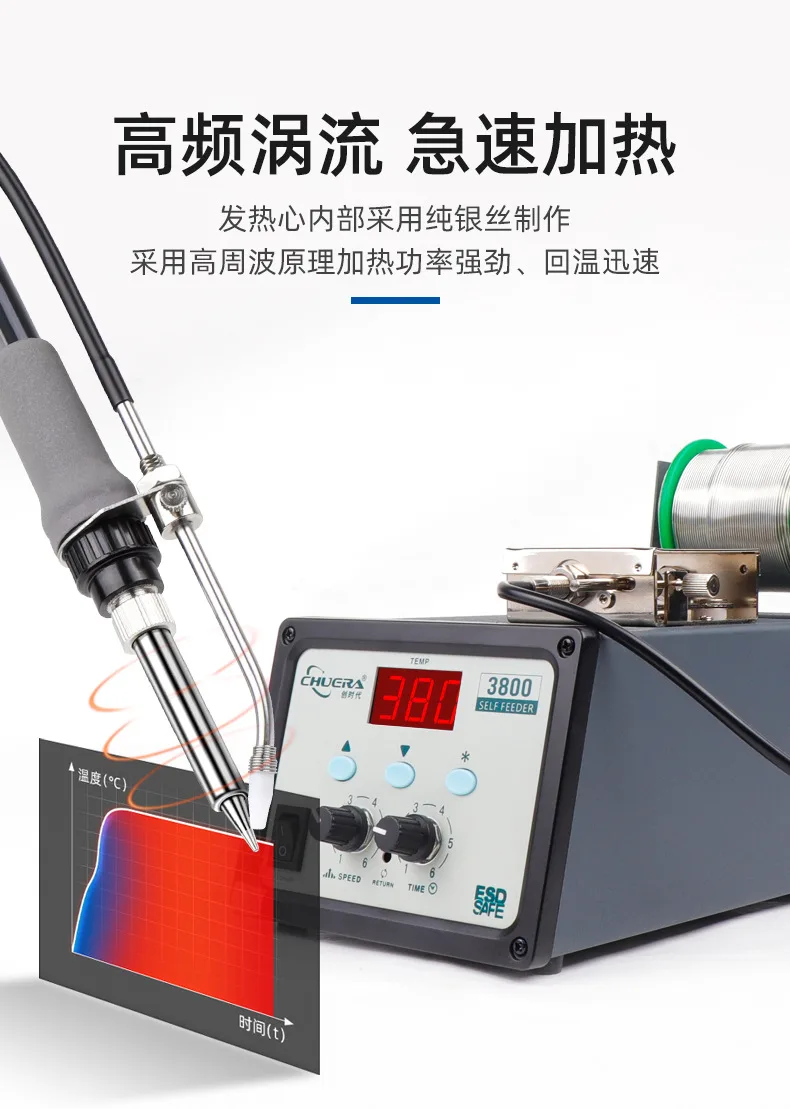

• High-frequency eddy-current heating for fast heat-up; 50–600 °C range

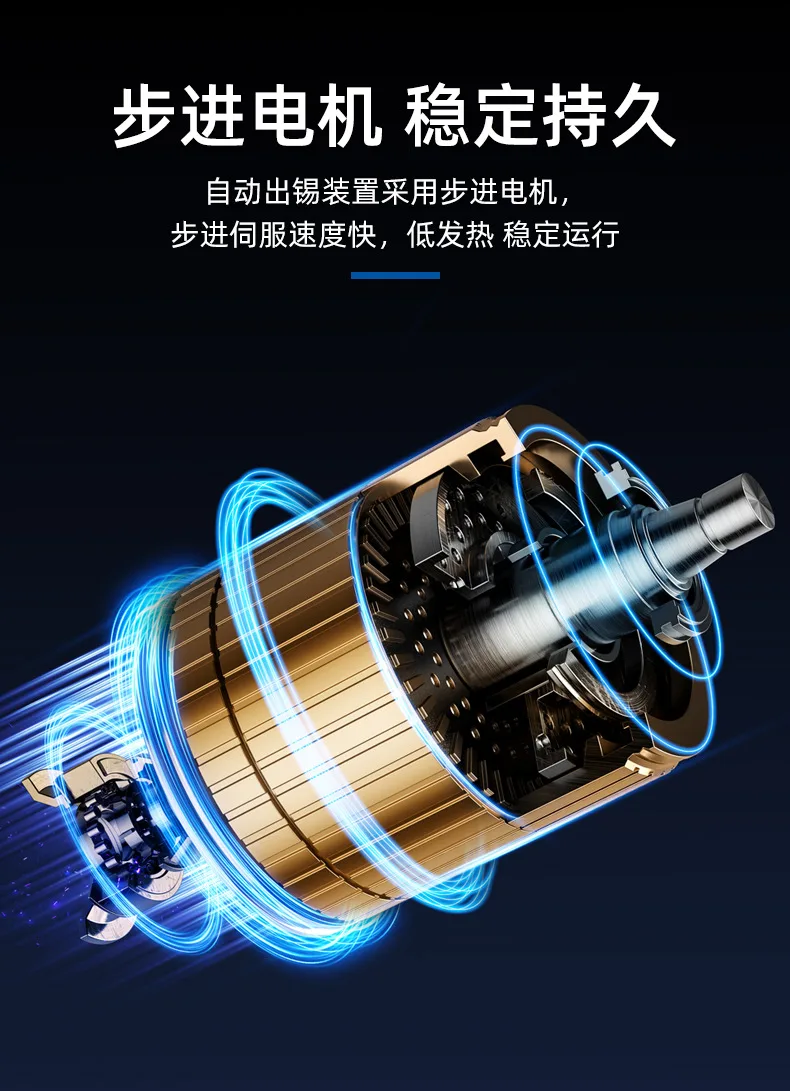

• Stepper-motor wire feed for 0.6–1.4 mm solder wire, 2.7–27 mm/s

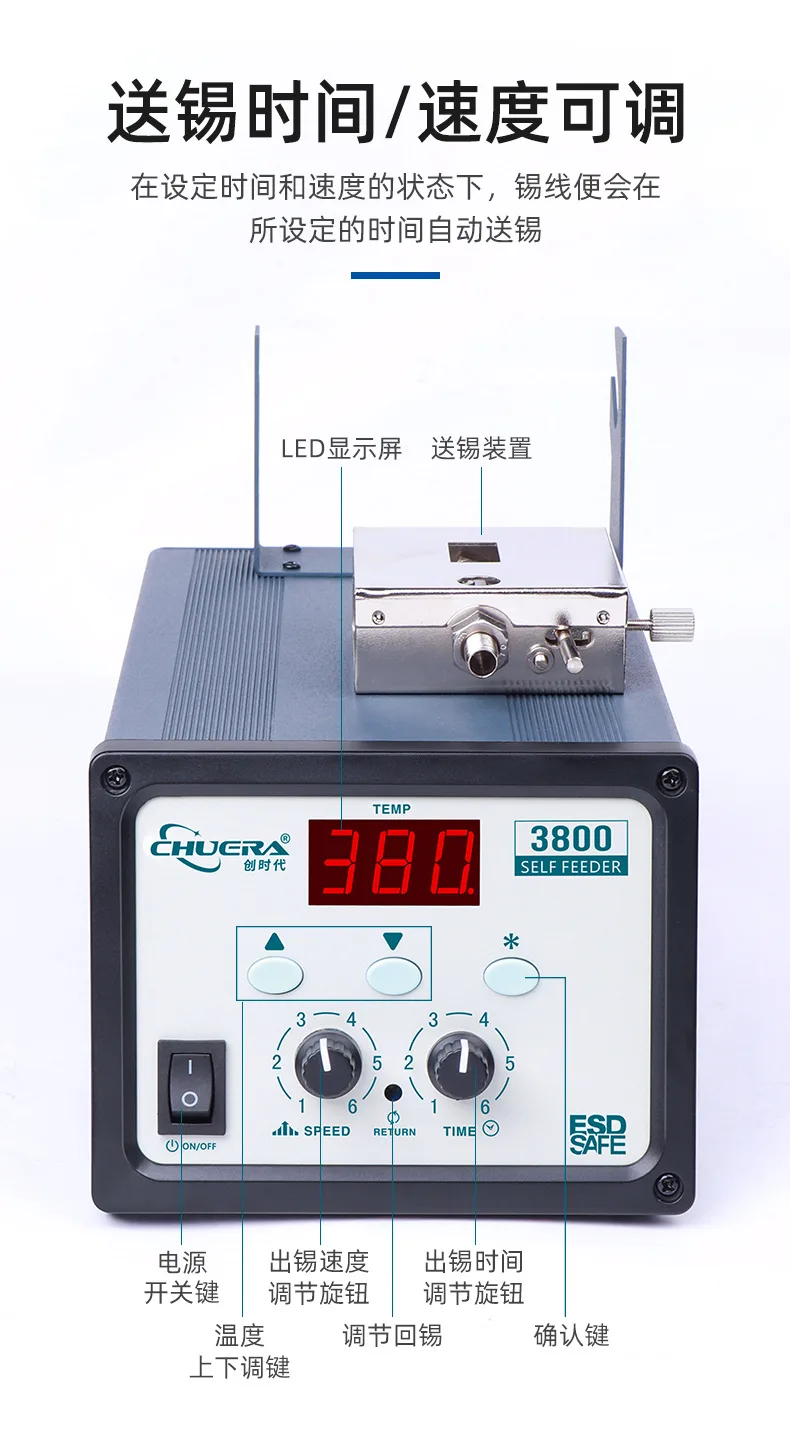

• Adjustable feed length (0–150 mm), speed and retract time

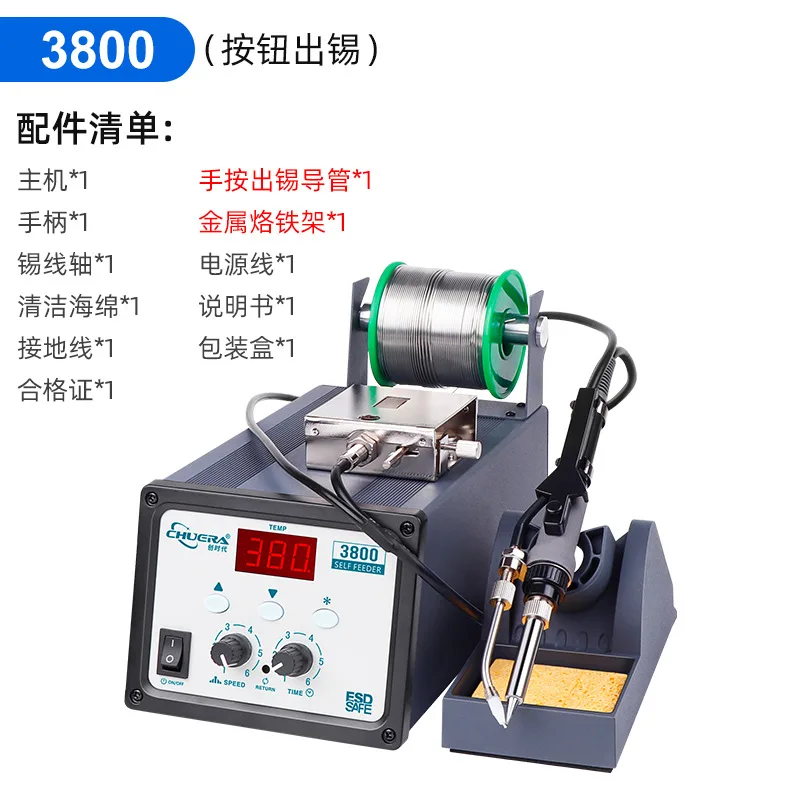

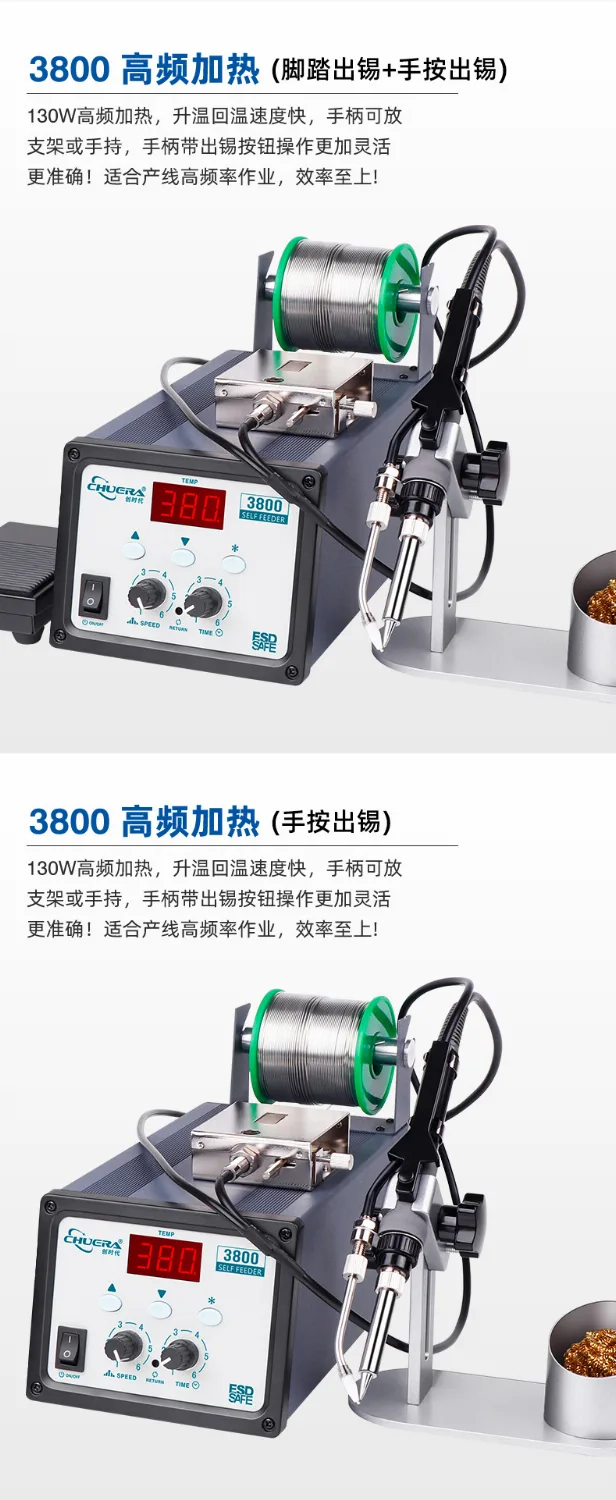

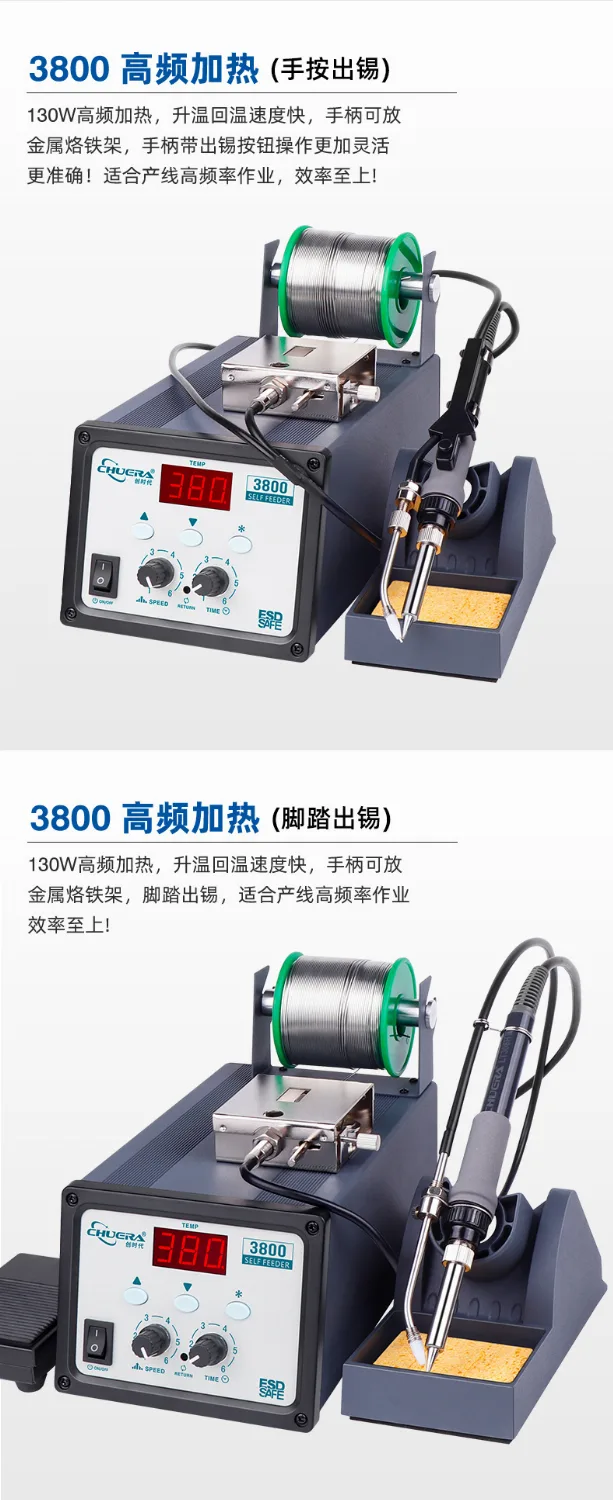

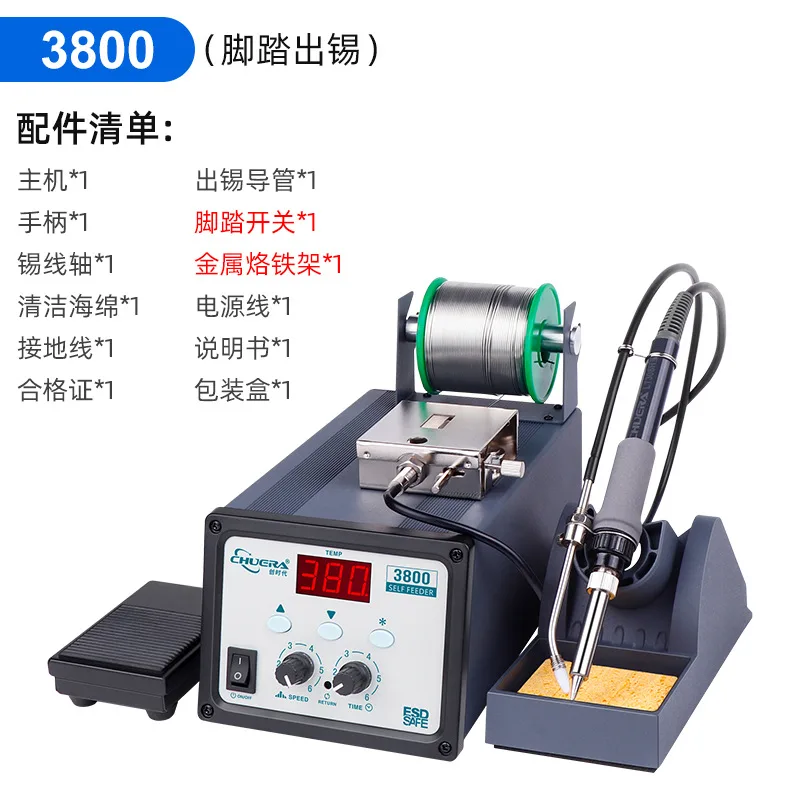

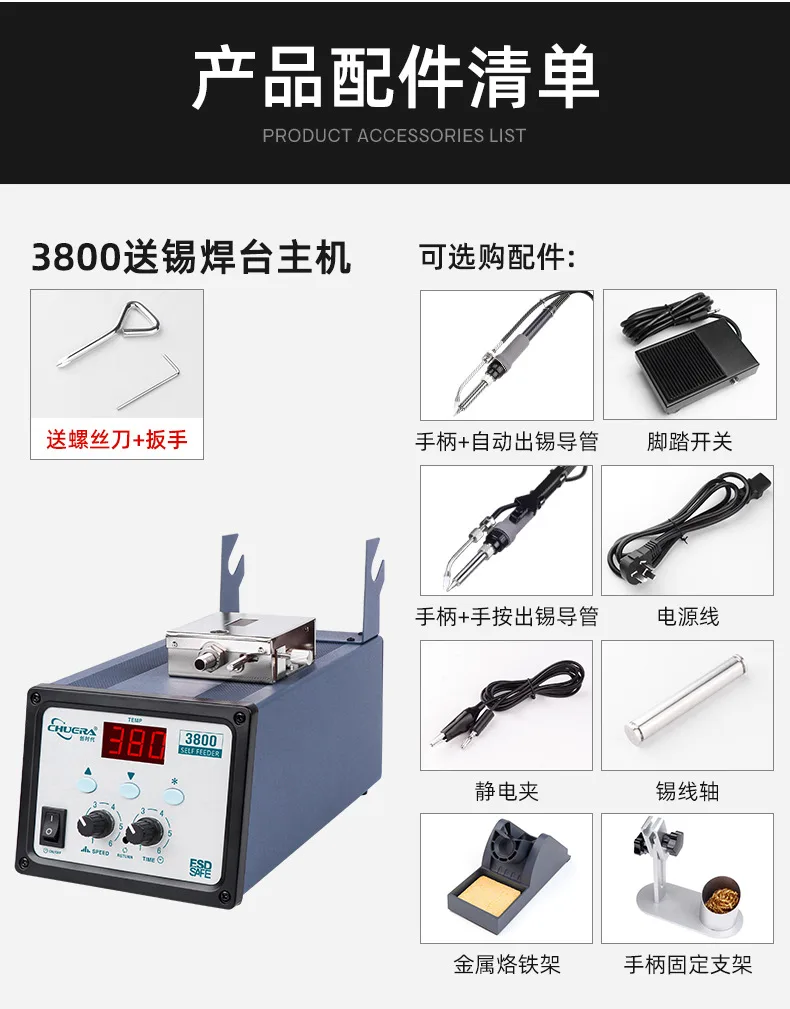

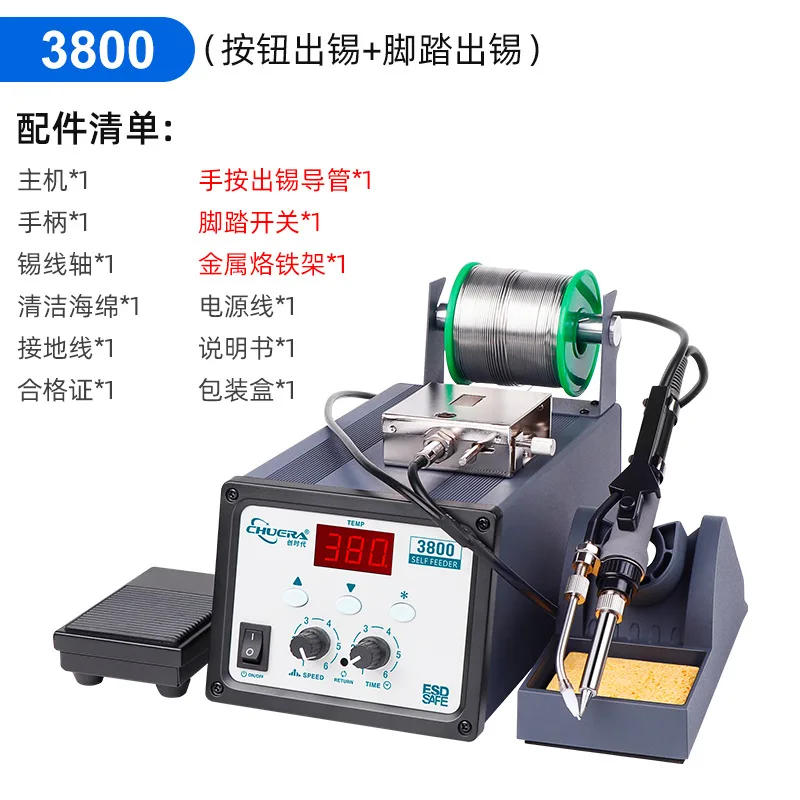

• Versions: 3800 Pedal, 3800 Button, 3800 Pedal + Button
• Digital temperature display and digital calibration
• Password lock prevents accidental changes

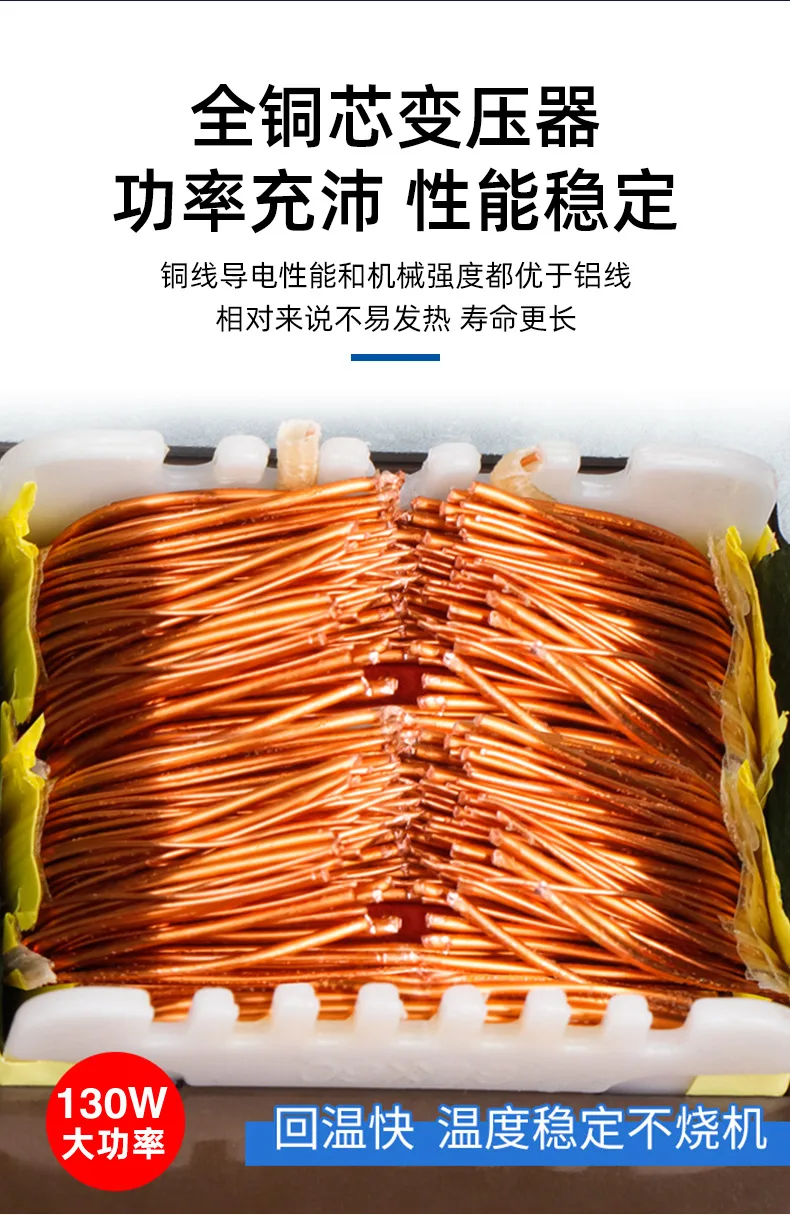

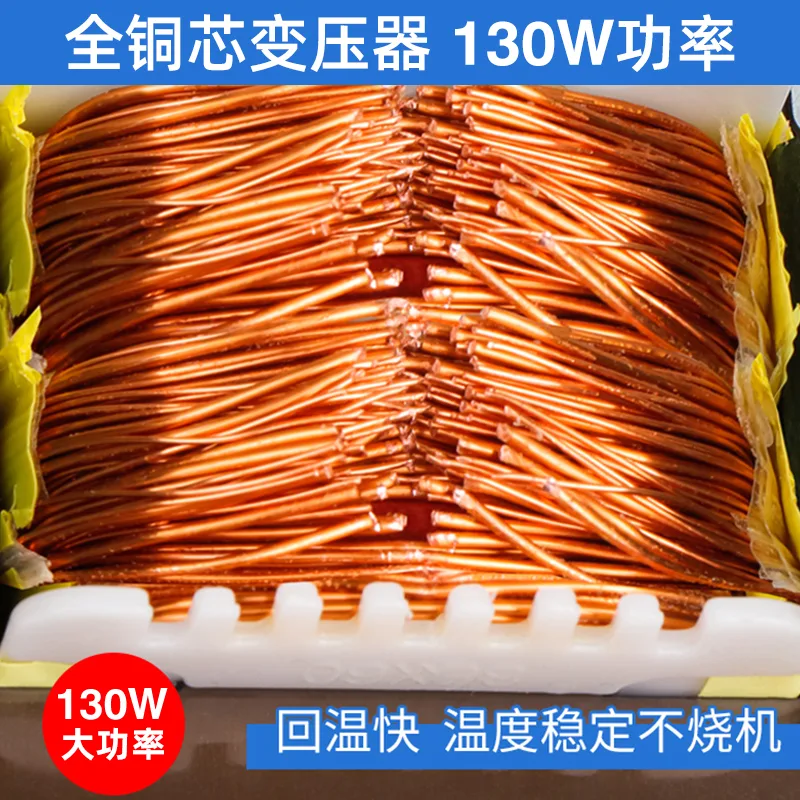

• Pure-copper-core transformer; low-voltage heating; uses 200 series tips
